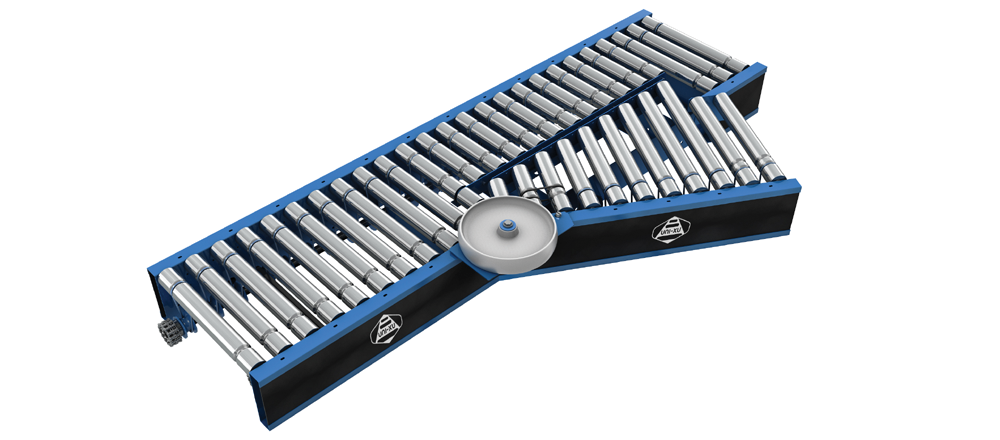

Painted Steel Powered Roller Lineshaft Conveyor – 30° Merge Unit

Overview

  • Available for XU30, XU30S, XU60 and XU90.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • Right and left hand merges available.

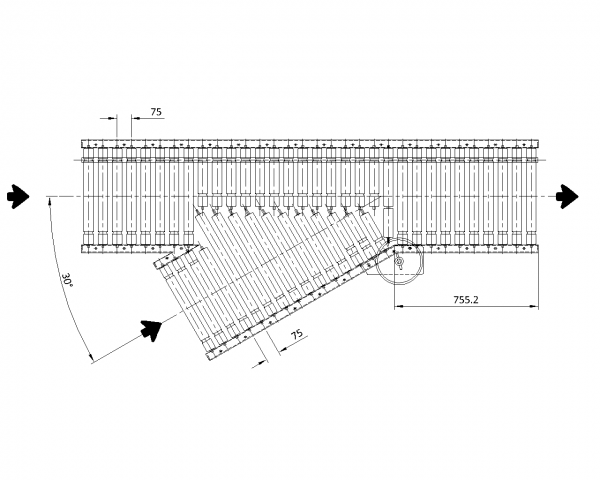

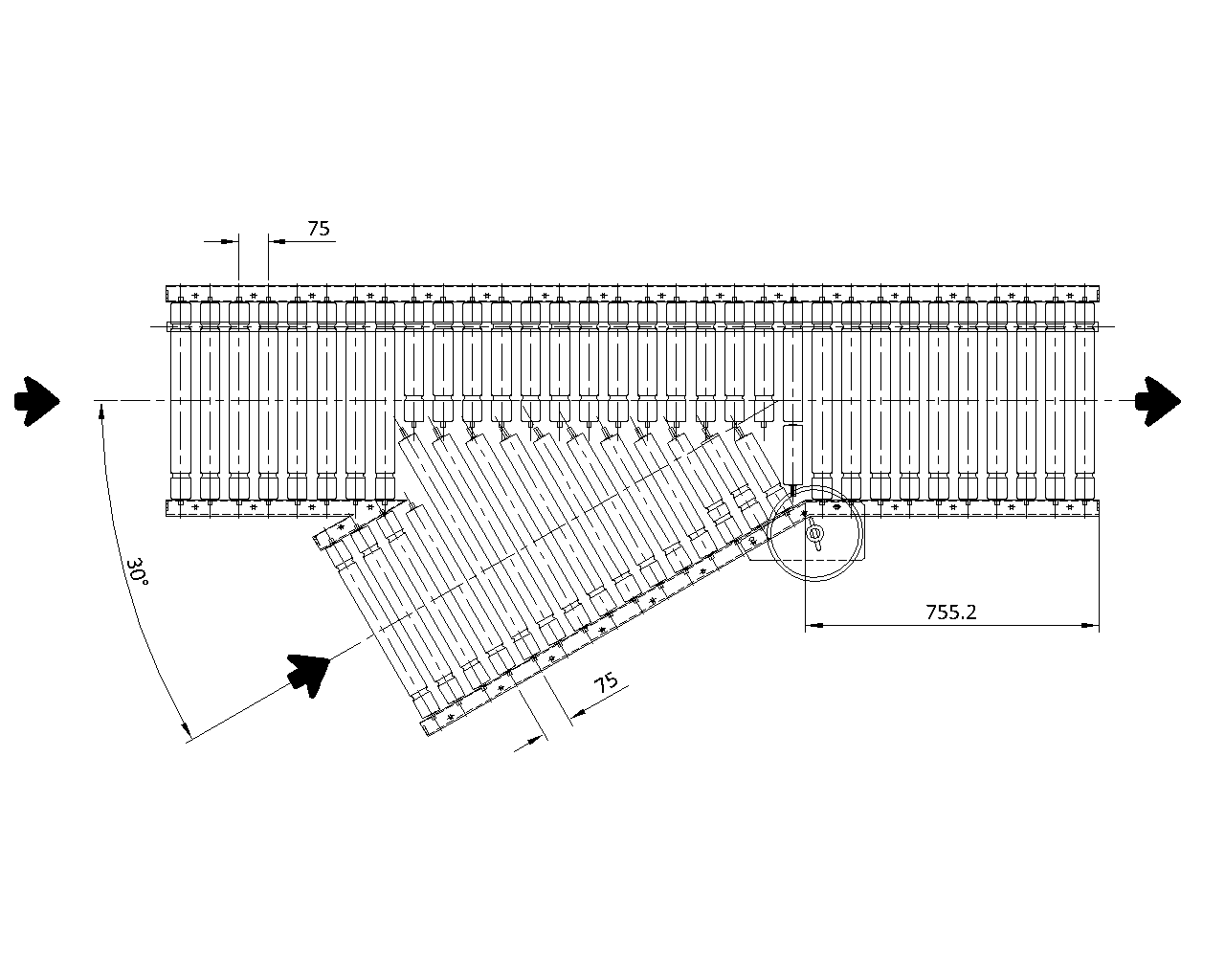

  • The rollers are always fitted at 75mm pitch and driven with heavy duty drive belts.
  •  The ability to merge tracks at 90° and parallel lines when using 60° and 30° bends.
  •  Merge unit includes jump chains and universal joints which allow the drive to be continued through the unit.
  • Can be used in conjunction with XU30 and XU30S conveyor, but intermediate rollers must be fitted.
  • Supplied with a turning wheel for positioning at the leg intersection to assist with guidance of the product.
  • Accumulation is not advised.
  • Maximum throughput of 25 packs per minute based on conveyor speed of 50 metres per minute.

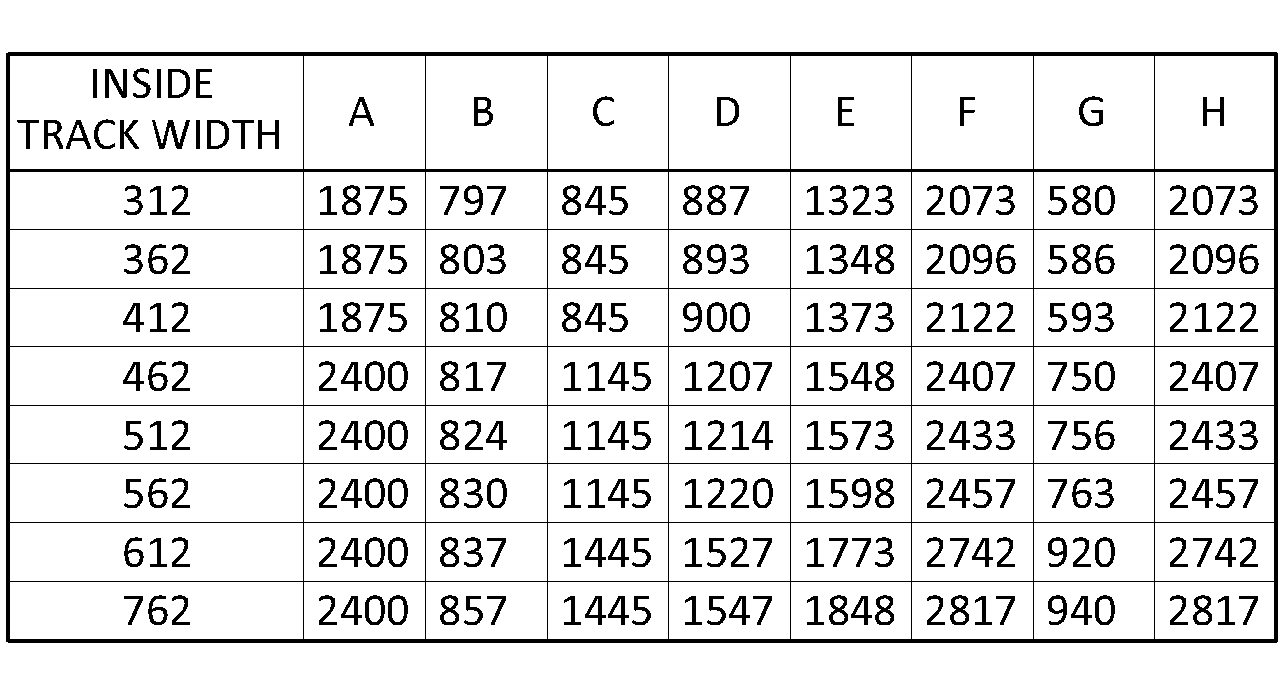

  • Standard widths available: 412mm, 462mm, 512mm, 612mm and 762mm. Other widths available on request.
