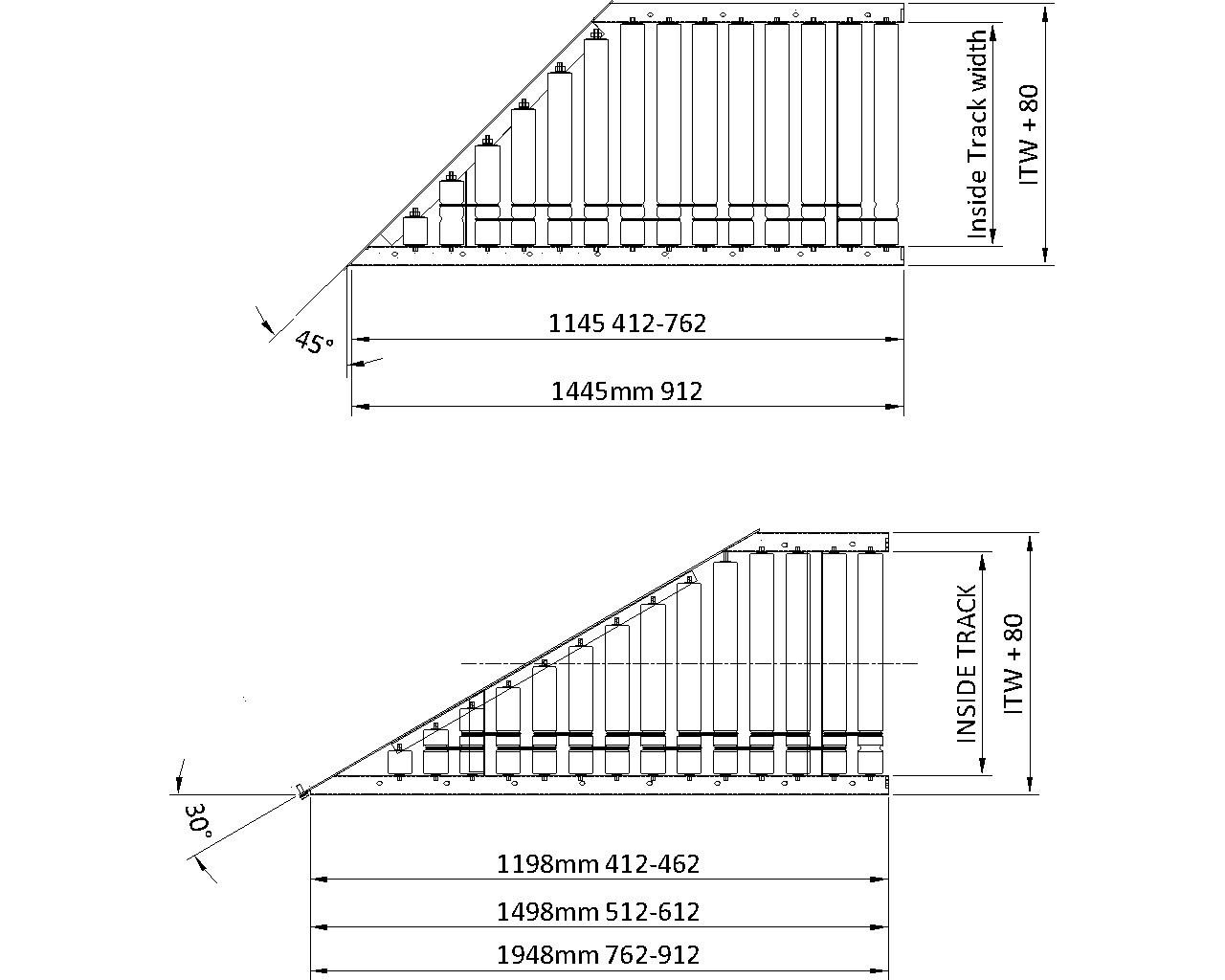

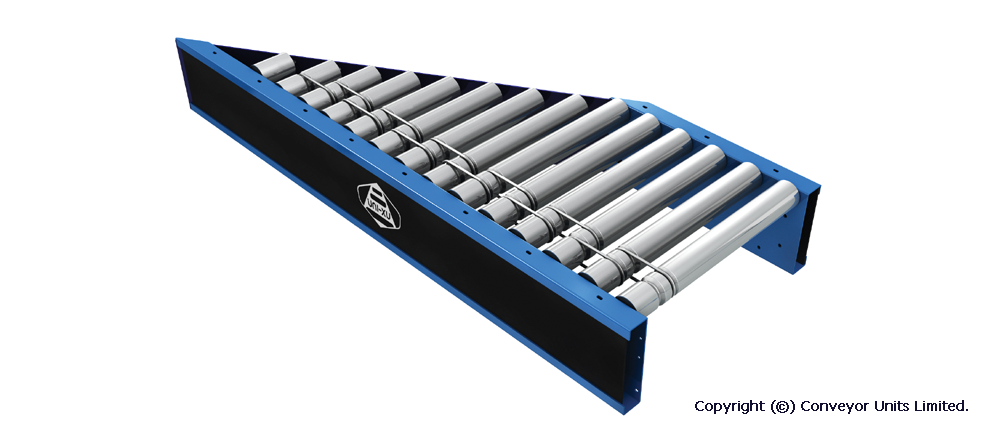

Painted Steel 24V Motorised Roller Conveyor ‘O’ Ring – 45° Mitre Section

Overview

  • Used where one conveyor feeds into or diverts from another.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • Also available in 30°.
  • Standard widths available 412mm, 462mm, 512mm, 612mm, 762mm and 912mm. Other widths available on request.
