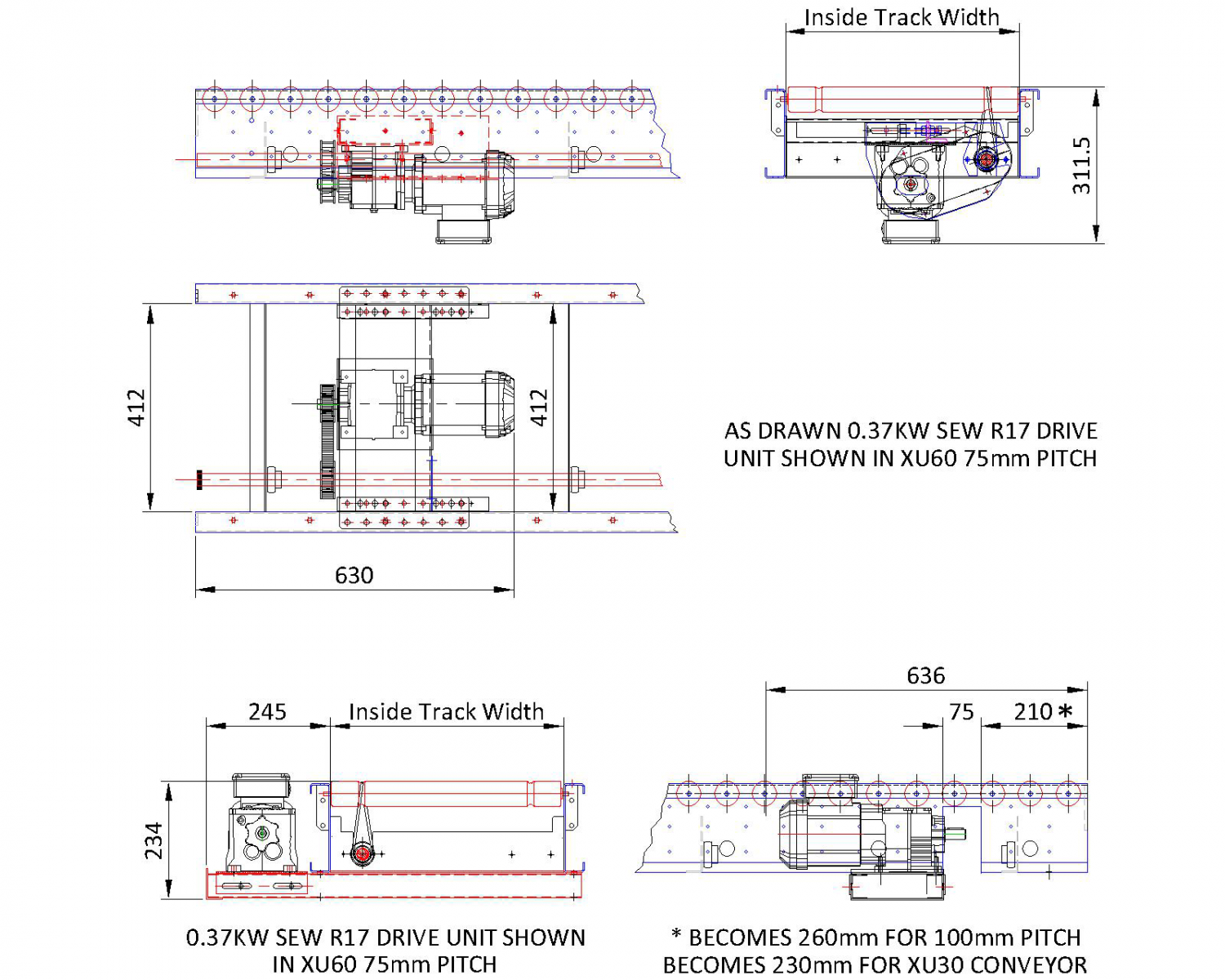

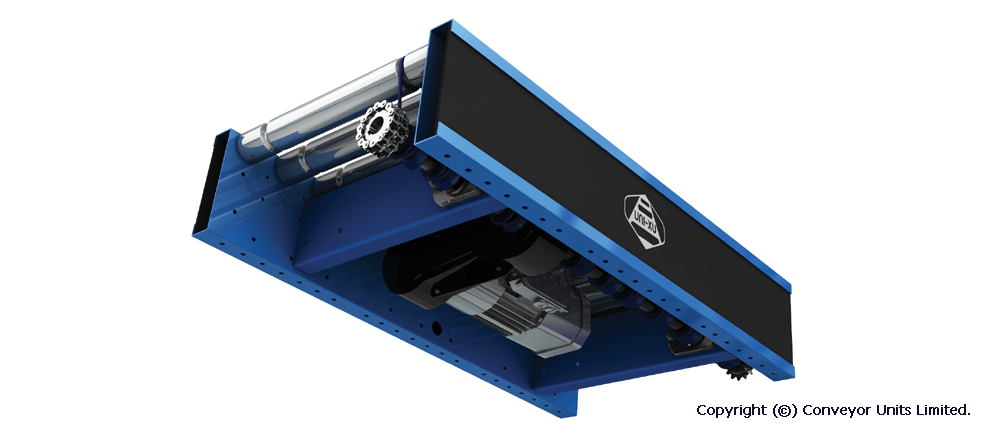

Painted Steel Lineshaft Powered Roller Conveyor – Geared Motor Drive Unit

Overview

  • Available for XU30, XU30S, XU60 and XU90.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.

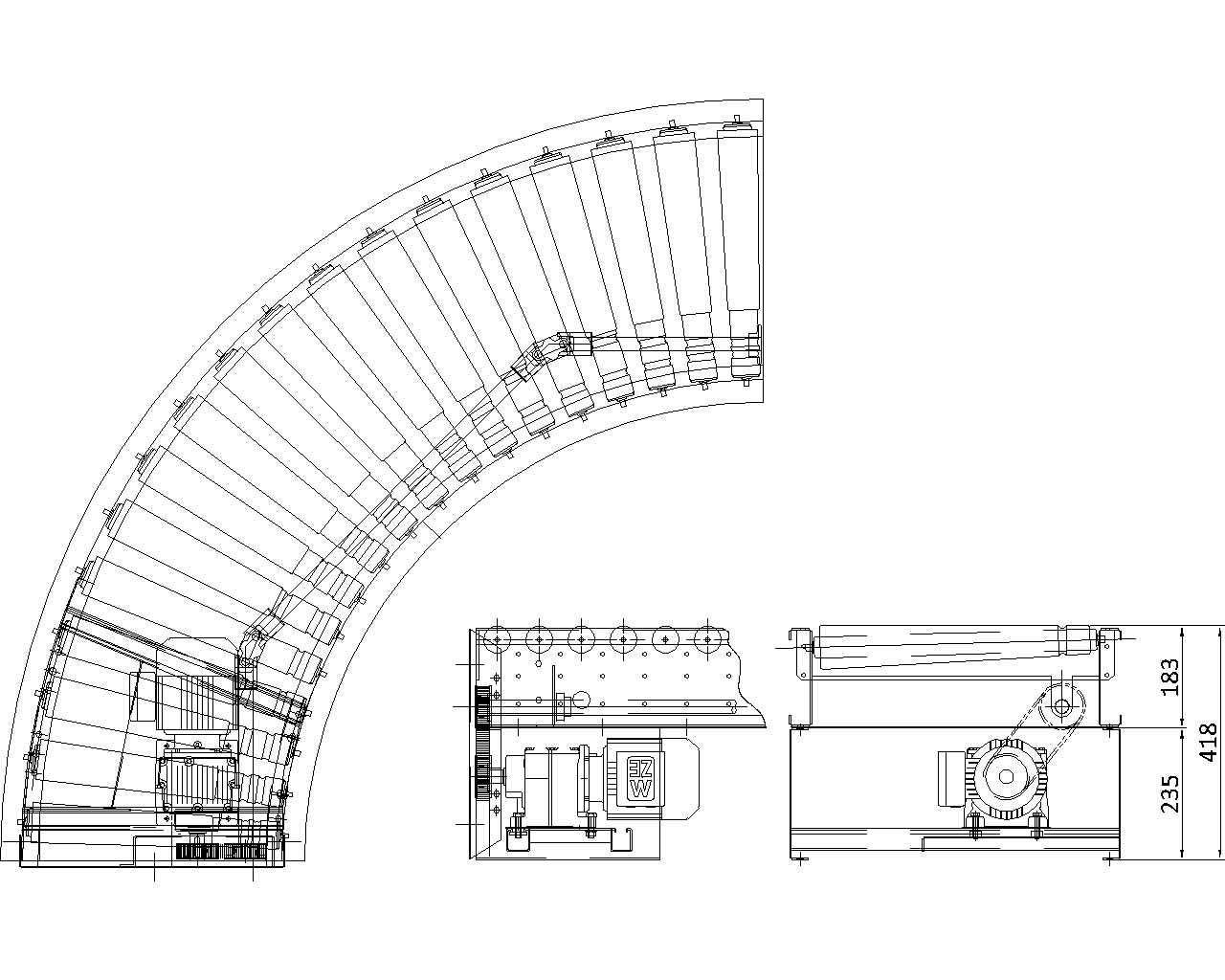

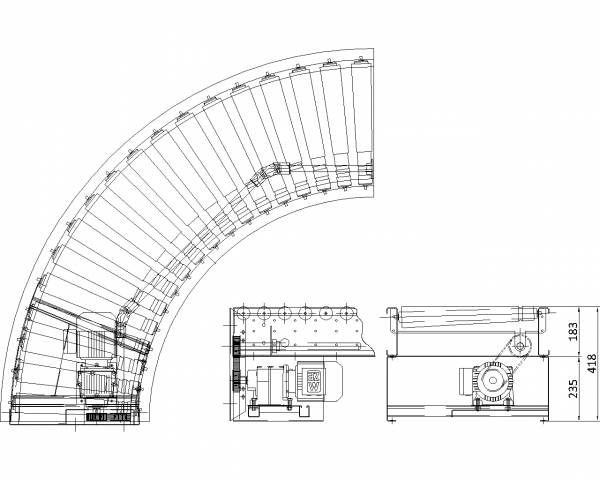

  • Can be fitted to straight track as well as 90° and 60° bends.
  • Urethane mounted to reduce transmission noise.
  • Screwed tensioner to ensure correct timing belt tensioning.
  • Moving parts are fully enclosed in a removable vacuum moulded guard.
  • SEW Eurodrive geared motor units – 0.37 and 0.75 kW available
  • Standard speeds available 12, 15, 20, 25 and 30 metres per minute.
Total length of straight track driven from 1 drive unit
– to be approx. equal either side of drive unit
Conveyor Speed
Roller Centres on Straight Track 10 m.p.m 20 m.p.m 30 m.p.m
37.5 & 75mm 36m 18m 12m
100mm 48m 24m 16m
150mm 72m 36m 24m
Total length of straight track driven
from 1 drive unit – to be approx.
equal either side of drive unit
Roller Centres on Straight Track 90°
Bend
60°
Bend
45°
Bend
30°
Bend
Switch &
Merge
Twin Chain Transfer Corner Turn
37.5 & 75mm 4.90 3.70 2.40 1.90 7.60 1.00 3.70
100mm 6.10 4.70 3.20 2.40 10.20 1.25 4.70
150mm 9.20 7.00 4.80 3.50 15.20 2.00 7.00

Technical Information

LENGTH OF CONVEYOR NOT ACCUMULATING  (metres)

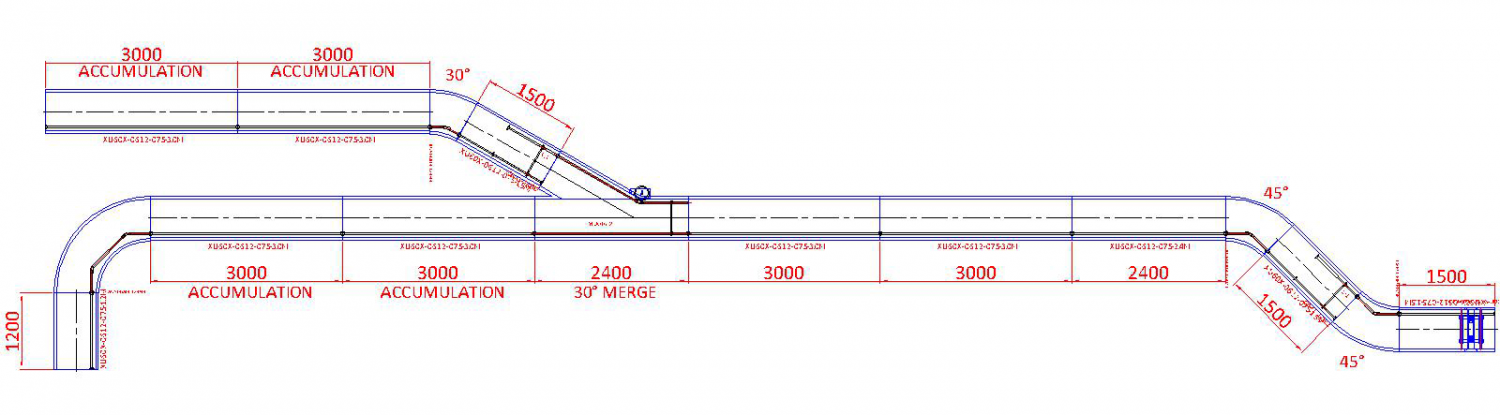

Example based on conveyor speed of 10 m.p.m. and 75mm roller pitch.Technical Information

STRAIGHT TRACK                                                                           14.10
1 OFF 90 BEND                                                                                  4.90
1 OFF 60 BEND                                                                                  3.70
2 OFF 45 BENDS                                                                               4.80
1 OFF 30 BEND                                                                                  1.90
1 OFF 30 MERGE                                                                               7.60
1 OFF 30 SWITCH                                                                              7.60
1 OFF CORNER TURN                                                                       3.70
1 OFF TWIN CHAIN TRANSFER                                                       1.00

LENGTH OF CONVEYOR TRACK ACCUMULATING

STRAIGHT TRACK 12 metres x 2 (Accumulation Factor)            24.00
TOTAL =   73.30

NUMBER OF DRIVES REQUIRED

73.30 metres

36.00 metres = 2.036 Therefore 3 drives required @ 0.37kw
