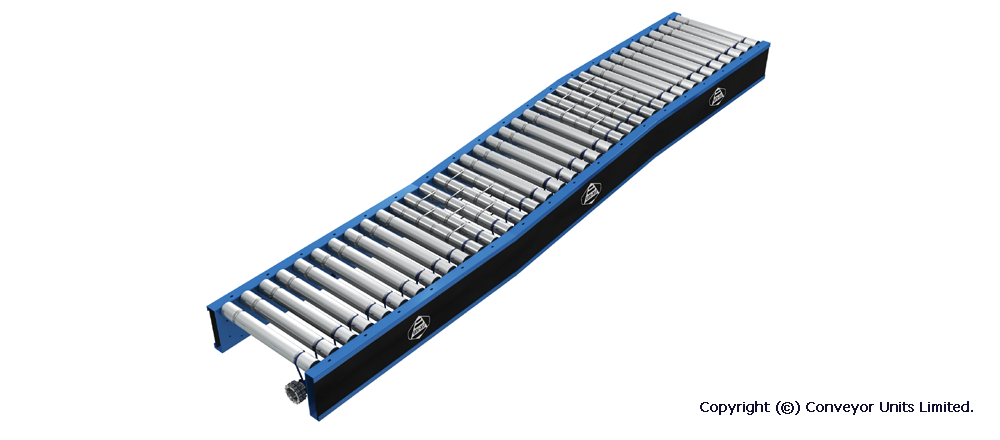

Painted Steel Powered Roller Lineshaft Conveyor – Incline / Decline Joint

Overview

  • Available for XU60 and XU90.
  • Incline section uses XU90 conveyor with rollers at 75mm pitch.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.

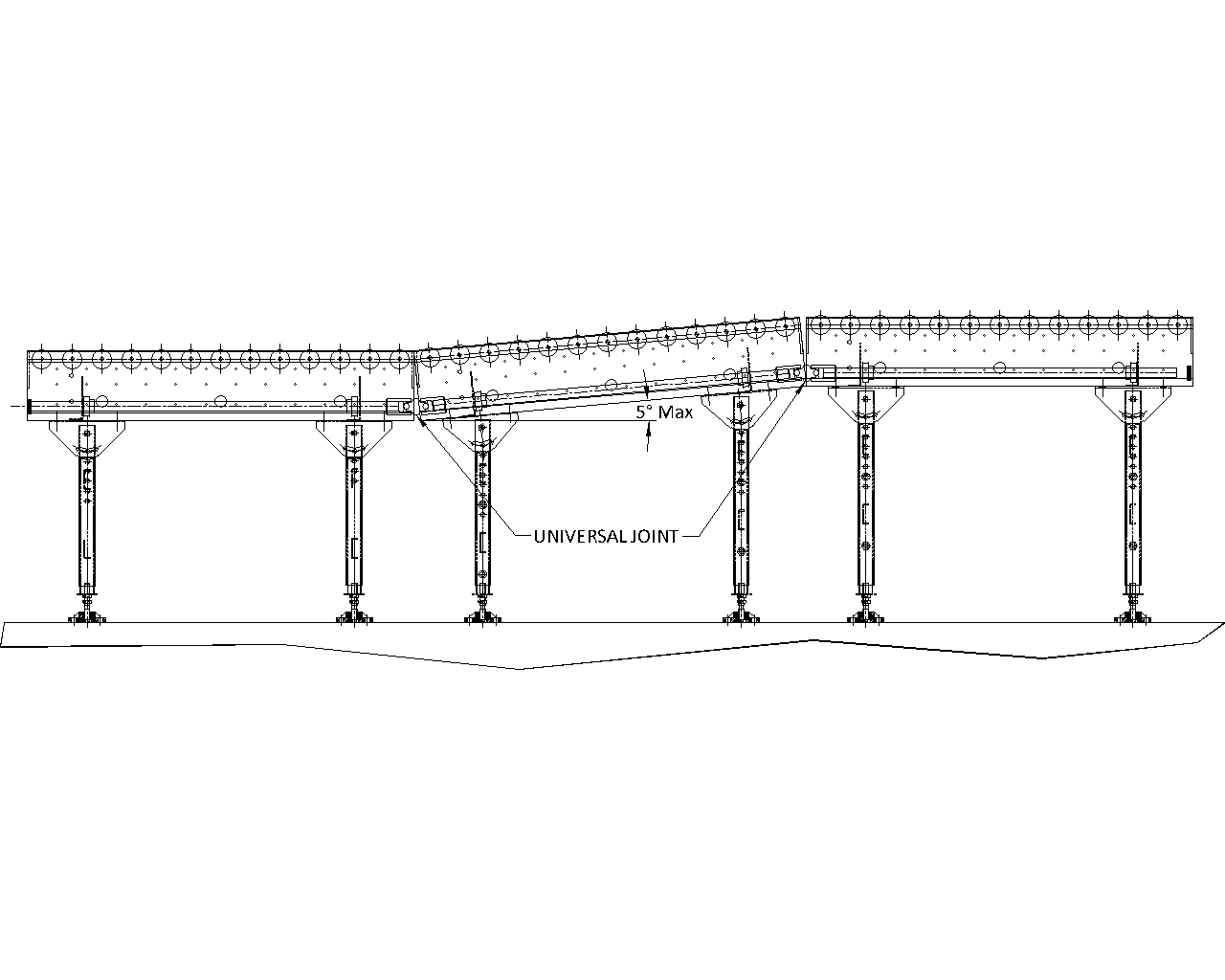

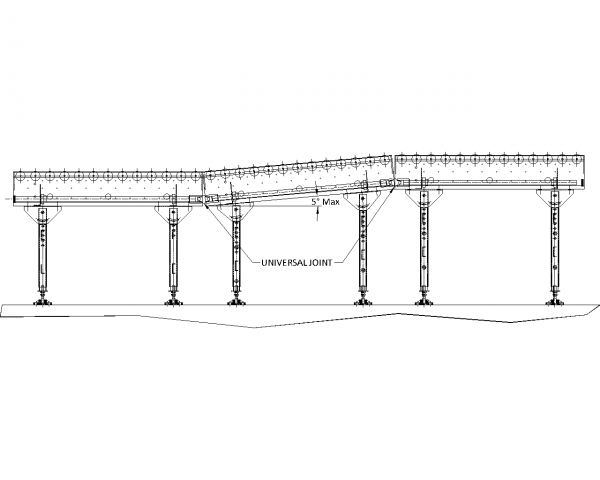

  • The maximum angle of incline/decline which is recommended with the standard specification of conveyor equipment is 5°, depending on the product length and weight, this may be increased.
  • We recommend the fitting of intermediate rollers at both ends of the intersection for a distance equal to the maximum product length to prohibit ‘nosing-in’ between roller pitchings.
  • We recommended that product trials are carried out at our works.
