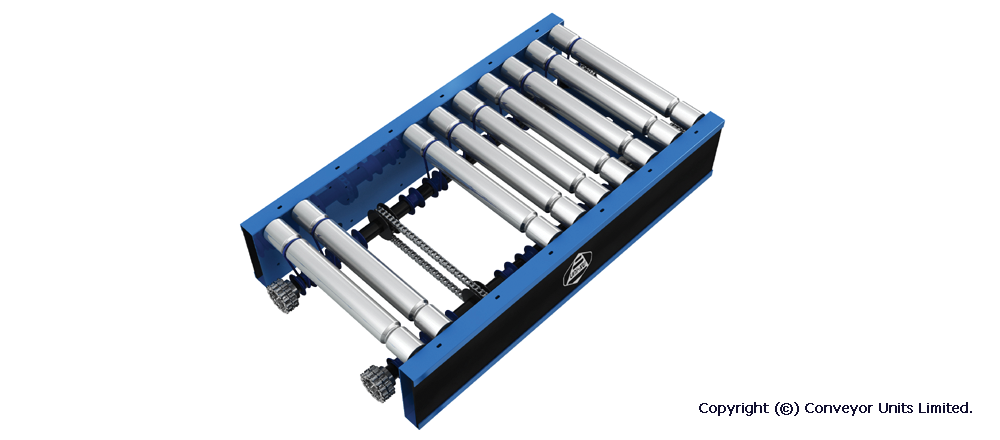

Painted Steel Powered Roller Lineshaft Conveyor – Jump Chain Assembly

Overview

  • Available for XU30, XU30S, XU60 and XU90.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.

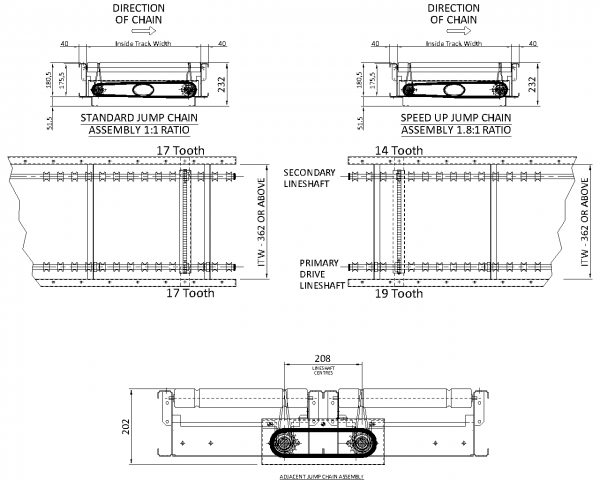

  • A jump chain assembly comprises two sprockets and a chain which are used for transferring the drive between lineshafts when they are positioned on opposite sides of the conveyor.
  • Standard jump chain 1:1 ration (17 tooth: 17 tooth 1/2″ pitch sprockets).
  • Speed up jump chain ratio 2:1 available for product separation (14 tooth: 19 tooth 1/2″ pitch sprockets and with speed up spools).
  • Adjacent jump chain available for driving two conveyors which are side by side 1:1 ration (17 tooth: 17 tooth 1/2″ pitch sprockets).
