Painted Steel Powered Roller Lineshaft Conveyor – 30° Mitre Section
•
Products
•
Lineshaft Powered Roller
•

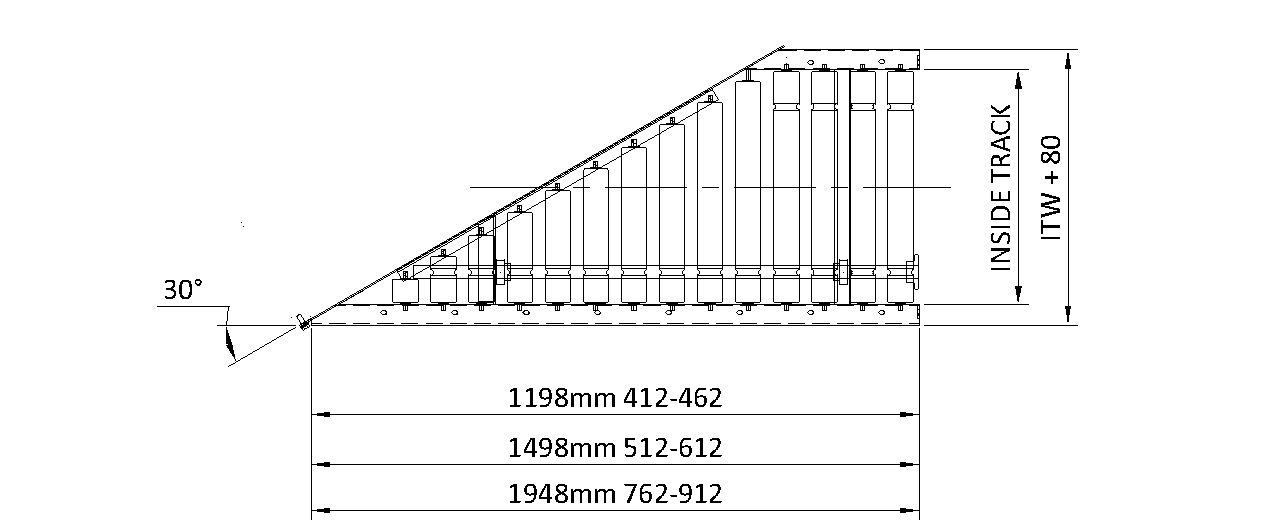

Painted Steel Powered Roller Lineshaft Conveyor – 30° Mitre Section
Overview
Available for XU60 and XU90.
‘C’ section framework, 176mm x 40mm x 2.5mm having return folds for to retention of the facia.
‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
Used where one conveyor feeds into or diverts from another.

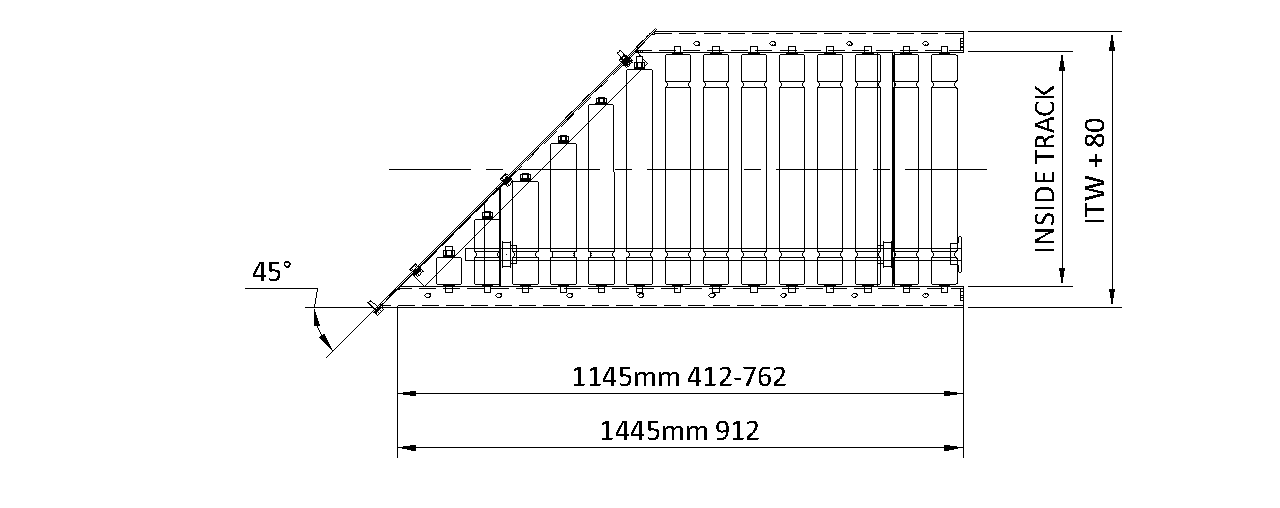

Also available as 45°.
Standard widths available 412mm, 462mm, 512mm, 612mm, 762mm and 912mm. Other widths available on request.
Videos
30 Deg Mitre Section
45 Deg Mitre Section
