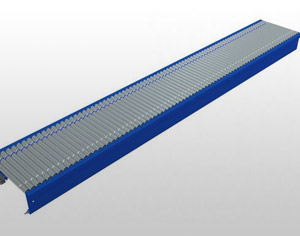

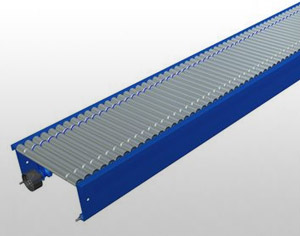

Painted Steel Powered Roller Lineshaft Conveyor – (Light Duty) XU30

Overview

  • Incorporates 35 mm diameter rollers, set at 37.5mm pitch. Drive capacity per roller 4Kg.
  • Available in ‘Z’ section framework only, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • Standard speeds available 12, 15, 20, 25 and 30 metres per minute as nominal. Other speeds available on request.
  • Low pressure accumulation.
  • Suitable for conveying very small products with a minimum product length of 113mm.

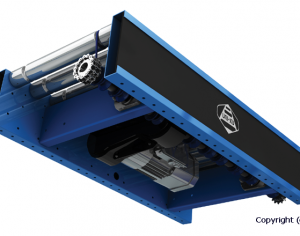

  • Drive up to 36 metres from one 0.37Kw drive unit.
  • Supplied in 3 metre fully assembled lengths as standard. Other lengths available on request.
  • Standard widths available: 412, 462, 512, 612, and 762mm. Other widths available upon request.
  • Full product testing available in our showroom.
  • Also available in stainless steel and aluminium.
