Overview

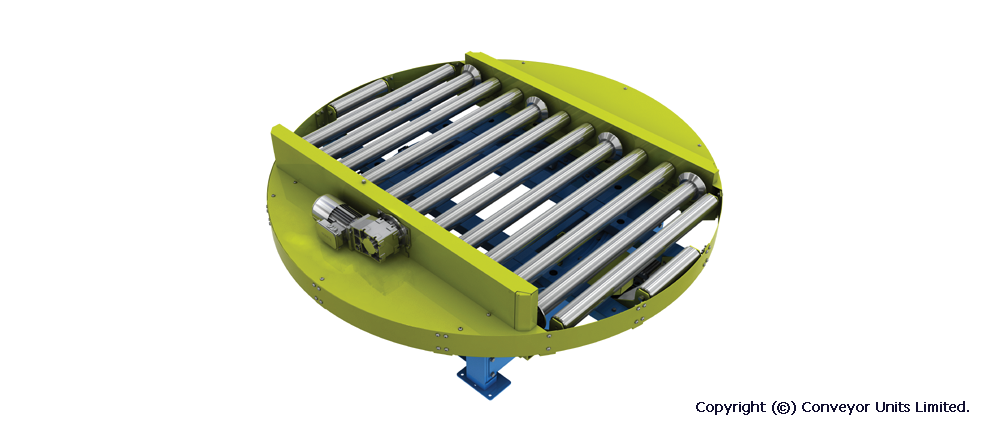

- Designed to change the direction of pallet travel by rotation of the pallet through any angle from 90° up to 180°, whilst keeping the relationship of the pallet runners to roller conveyor the same.
- Range of heights available from 400mm – 1150mm top of roller.
- Motors available – roller conveyor 0.37 kW (12 metres per minute), roller conveyor 0.55 kW (18 metres per minute).
- Pallet size – 800 / 1000mm leading edge on rollers x 1200mm long.
- Two rotation speeds available – rotation drive 0.18kW (2rpm), rotation drive 0.37kW (4rpm).
- Up to 174 pallets per hour rotating 90°.
- Roller and turning motors supplied braked as standard.
Video

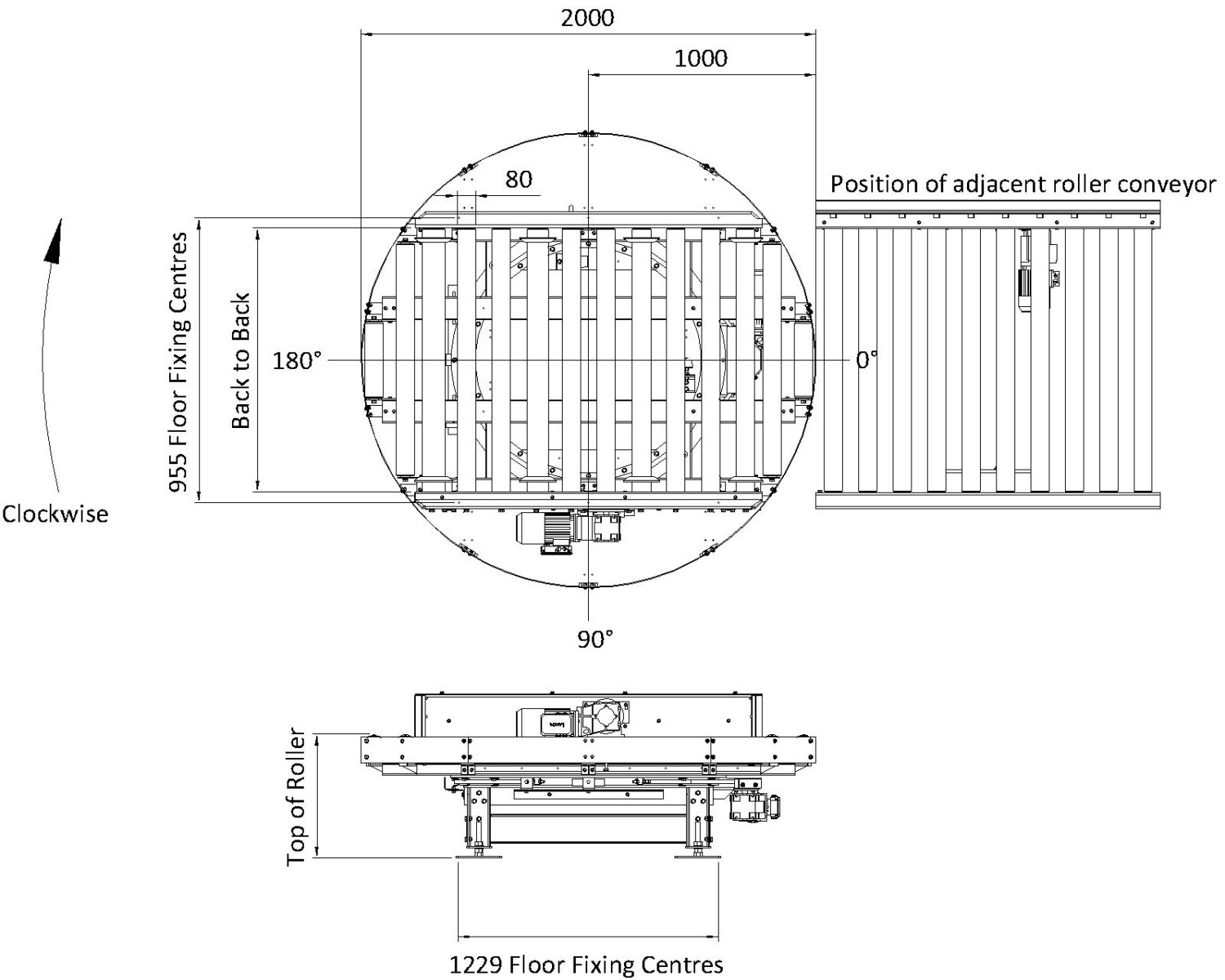

Technical Information
| Motor Power (kW) |
Full Load Current (A) |
| 0.18 |
0.58 |
| 0.37 |
0.95 |
| Motor Power (kW) |
Full Load Current (A) |
| 0.55 |
1.4 |
