Painted Steel Powered Roller Lineshaft Conveyor – Vertical Lift Chain Transfer Unit

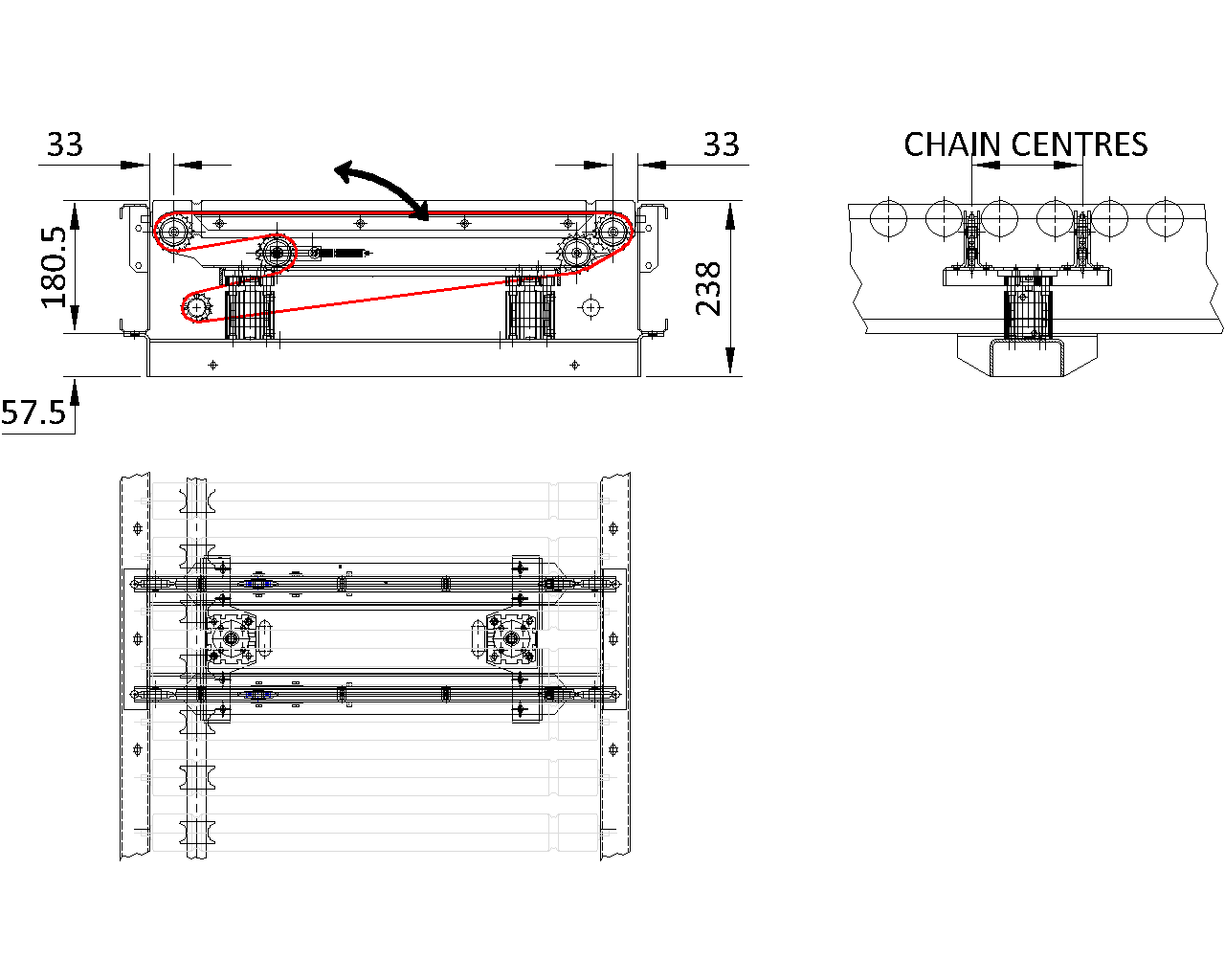

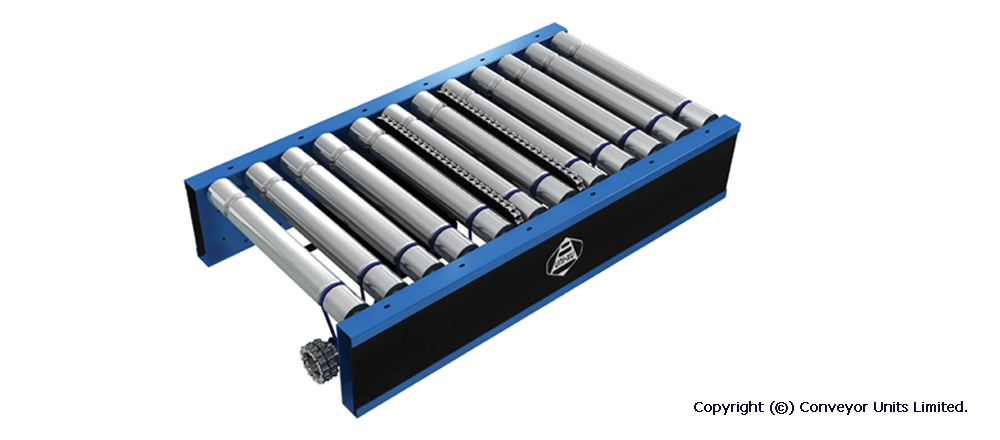

Overview

  • Fitted into tracks with 75mm pitch – XU60 and XU90. (If used in XU30 conveyor, a roller will be removed at chain position).
  • ‘C’ section framework, 176mm x 40mm x 2.5mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • The minimum chain centres are 150mm.
  • Maximum of 20 operations per minute.
  • Maximum capacity is 15Kg. per chain strand up to a total of 30Kgs.
  • Drive to the transfer chains is via sprockets on the main lineshaft.
  • The rise and fall of chains is actuated by double acting pneumatic cylinder.
  • Available in twin or triple chain transfers with either steel or nylon chain.
  • Two cylinders are required for twin chain transfers. Four cylinders are required for triple chain transfer.
  • Total air consumption per operation 0.51 litres per cylinder.
  • Standard widths available: 412mm, 462mm, 512mm, 612mm, 762mm and 912mm. Other widths available on request.
