Belt Mitre

A merge/divert module designed for e-commerce and postal distribution requirements.  It uses multiple strip belts to convey small and larger products off or on to conveyor lines.

Features and Benefits

  • Compact 50mm belt pitch.

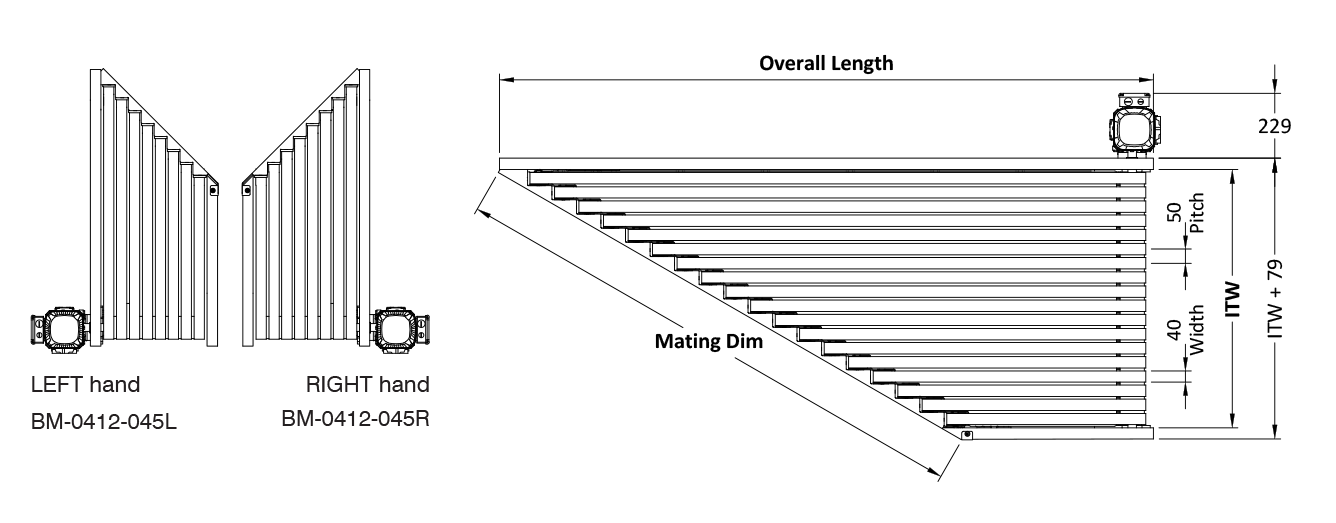

  • 30° and 45° mitre options.
  • Product weights up to X Kg.

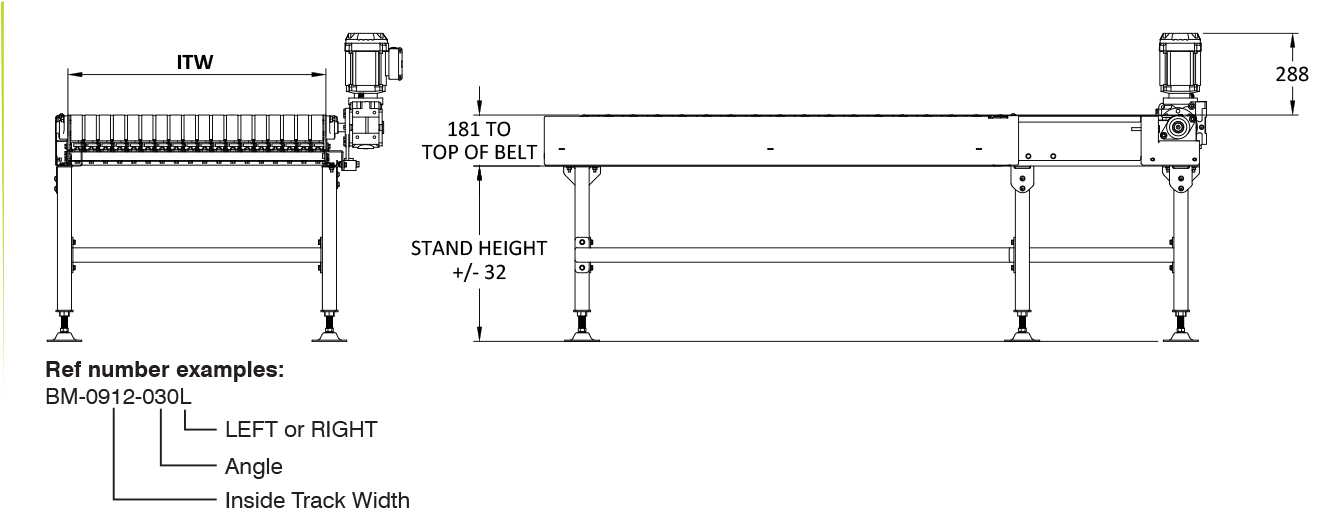

Module Height 181mm
Stand Height Confirmed at time of order – discuss with Sales
Frame Construction 12 gauge fabricated steel, bolted construction with welded butt couplings
Paint Finish Electrostatically applied power coating
Drive Technology SEW 0.55 kW 3ph helical geared motor.  230V delta 2.25A or 400V star 1.29A
Speeds Two drives are available as standard:
SA47 – 224 rpm = 60 m/min DOL
KA37 – xxx rpm = XX m/min DOL
Product Weight Up to 50 Kg
Belt Tensioning Pre-set during manufacture, easy to adjust via simple cam device on each belt carriage
