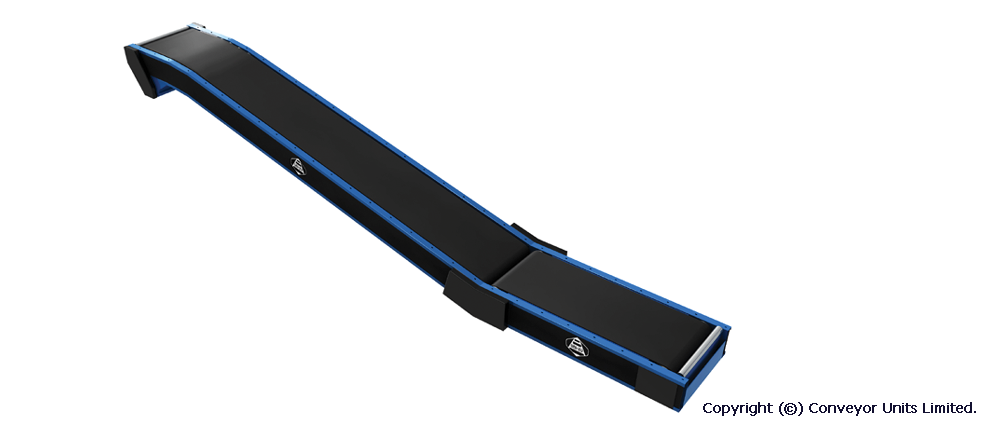

Painted Steel Belt Conveyor – F Type


  • End drive units fitted with SEW geared motor.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • units up to 0.55 kW.
  • Black grip top conveyor belt.
  • Can be supplied with 60 / 150mm side guides.
  • Optional pop out rollers at either or both ends.
  • Full width steel undersheet fitted as standard.

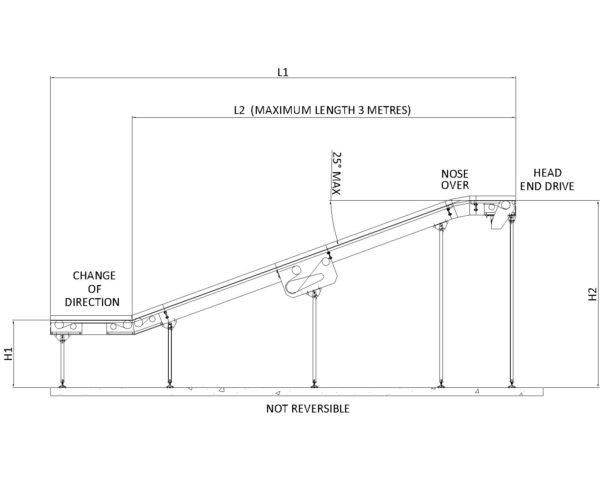

  • Standard angles of 10°, 15°, 20° and 25°. Other angles available upon request.
  • Available as Incline and Decline.
