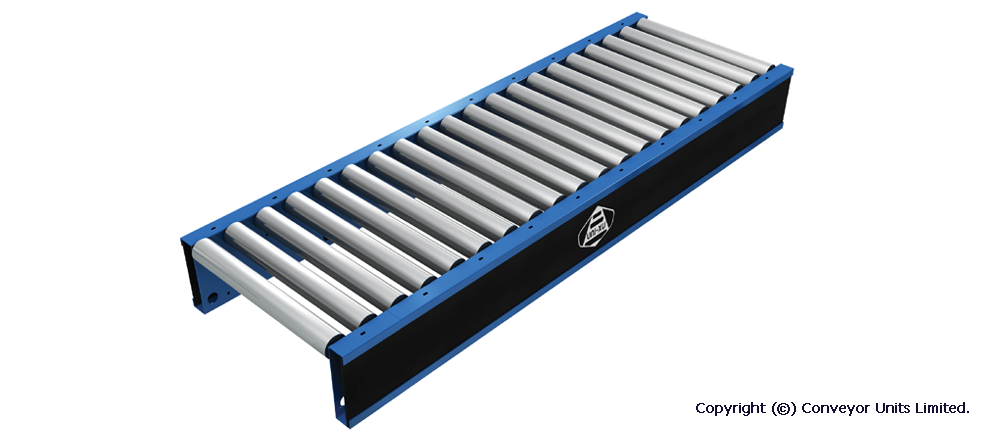

Painted Steel Gravity Roller Conveyor – XU60 PF1

Overview

  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • Standard widths available: 312 – 1012mm (in 50mm increments).
  • Static load per roller – 30Kg.
  • 50mm diameter steel rollers can be fitted at 75mm, 100mm and 150mm.
  • Top of roller height from underside of frame is 183mm.
  • Roller tubes are zinc plated as standard.
  • 50mm diameter plastic rollers are also available.
  • Available powder coated, stainless steel and aluminium.

Technical Information

Gravity Conveyor Braking Device

This standard device is incorporated into the xu30 and xu60 conveyor frameworks when used for a gravity application. It gives control of product descent by a rubber covered full brake pad which contacts the underside of the carrying rollers. Operation is by means of a pneumatic cylinder which can be operated to ‘pulse’ products down the decline and avoid congestion and damage.
