Painted Steel 24V DC Powered Conveyor – Electric Ancillaries

24V DC Transfers, Switch Sorters and Blade Stops to complete your system.

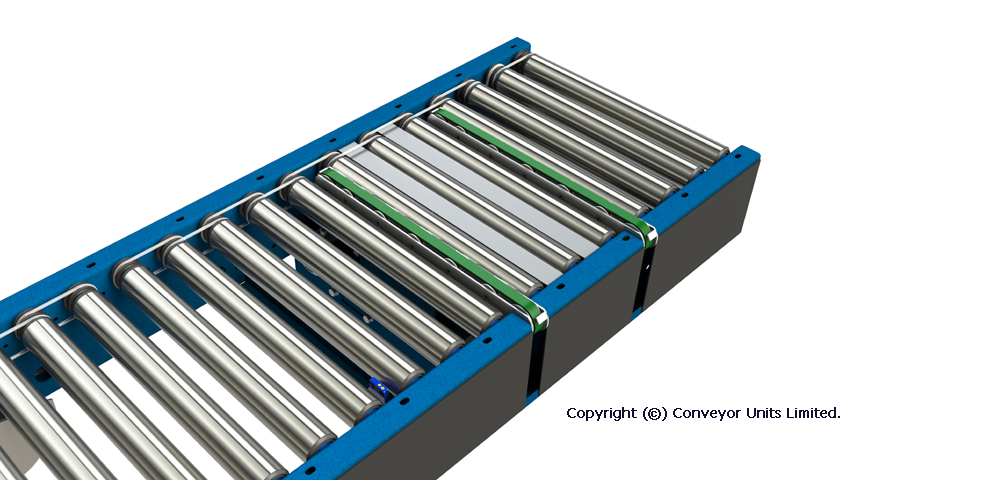

Transfer

• Belts: 16mm wide.
• Lift: 24V DC: 40W.
• Belt Drive: 24V DC: 12-60W.
• Belt Speed: Adjustable up to 110m/min (1.84m/sec).
• Transfer Rate: Up to 25 cases per minute = 1500 cases per hour.
• Frame Options: Powder Coated Steel.
• Widths Available: 462mm, 512mm, 612mm, 762mm, 912mm inside track width (other widths available on request).
• Variants Available: 2, 3 and 4 strand.
• Ease of Maintenance: Clever design means a wing/belt change is possible in just minutes.

Switch Sorter

• Roller Motors: 24V DC: 12-35W or 12-60W.
• Sorter Wheel Motor: 0.37kW 400V A.C. (inverter control advised).
• Wheel Actuation: 24V DC: 106W (max) 50W (nominal).
• Operation: Single and Bidirectional available.
• Sort Rate: Up to 50 cases per minute = 3000 cases per hour.
• Minimum Package Size: 200mm x 200mm.
• Supplied with electric actuator control box – ready to connect to and run.
• Speed: Up to 110m/min (1.84m/sec).
• Frame Options: Powder Coated Steel.
• Widths Available: 462mm, 612mm, 762mm, 912mm inside track width.

Vertical Blade Stop

• Blade Drive: 106W (max) 50W (nominal) 24V DC.
• Operations: Up to 33 times per minute = 2000 cases per hour.
• To Suit Conveyor Frame: Powder Coated Steel.
• Widths Available: 412mm, 462mm, 512mm, 612mm, 762mm, 912mm inside track width.
