Painted Steel 24V DC Powered Conveyor – Lift Up Gates – Zero Line Pressure or Transport
•
Products
•
24V DC Powered Conveyor
•
Painted Steel 24V DC Powered Conveyor – Lift Up Gates – Zero Line Pressure or Transport
Lift Up Gates – Zero Line Pressure or Transport
Assisted Lift: Two gas struts assist with lifting/lowering action.
Rollers: 50mm x 1.5mm steel – zinc plated.
Roller Pitches: 60mm, 75mm.
Drive Options: Round Belt or Poly V drive.
Motor Options: 24V DC: 12-35W or 12-60W.
Speed: Adjustable up to 100m/min (1.84m/sec).
Frame Options: Powder Coated Steel.
Widths Available: 412mm, 462mm, 512mm, 612mm, 762mm, 912mm inside track width.
Dimensions: Gives a clear entry of 953mm when lifted.
Photocells included in Zero Line Pressure variant.

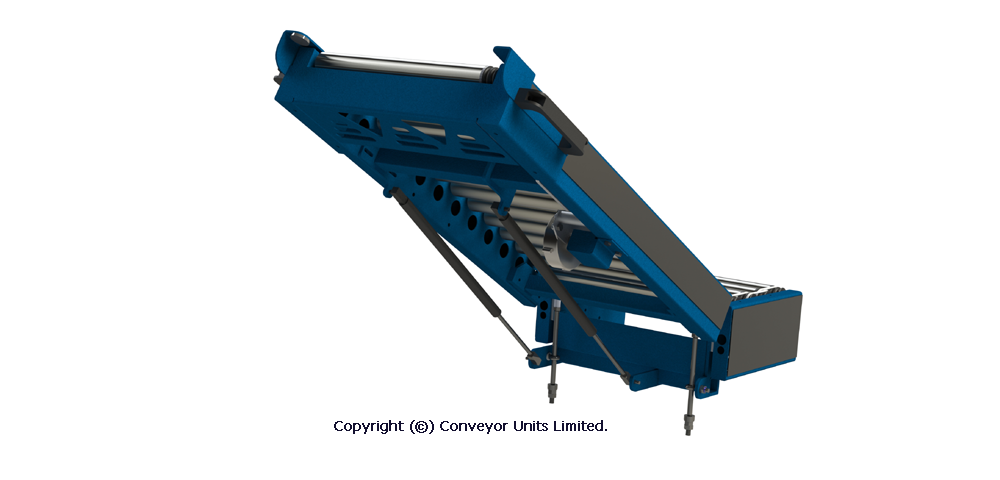

Lift Up Gate - Powder Coated Steel Frame
