Painted Steel Belt Under Roller – Belt Transfer
•
Products
•
Belt Under Roller
•

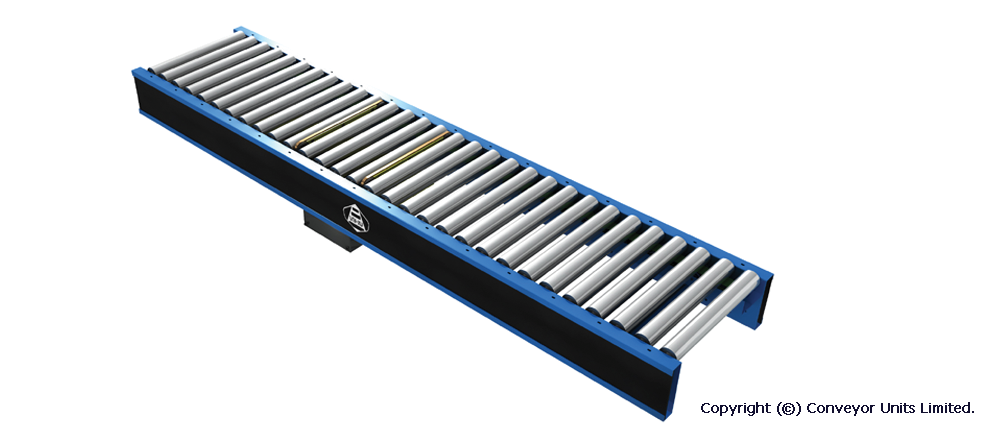

Painted Steel Belt Under Roller – Belt Transfer
Overview

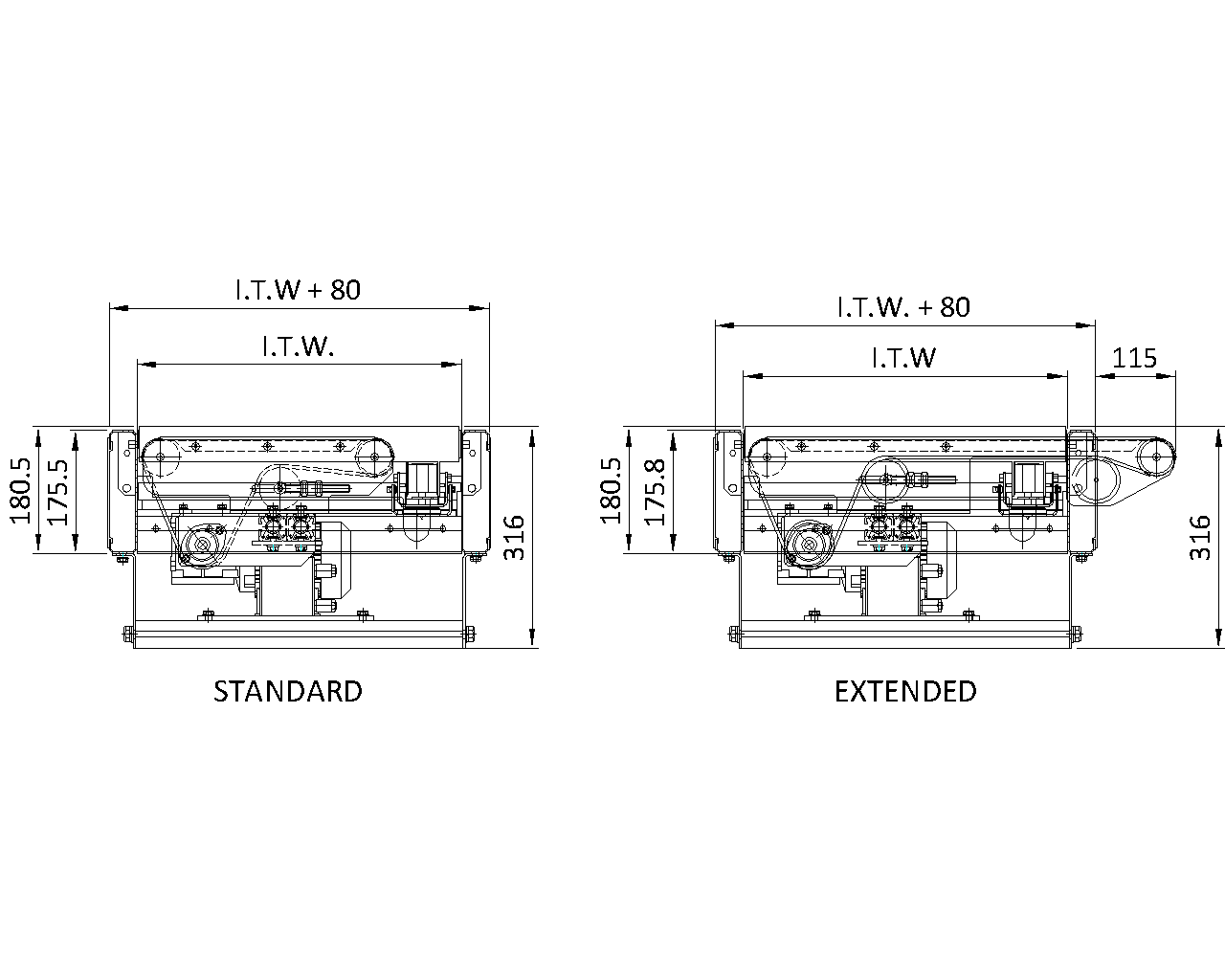

‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
Can be fitted to straight sections of track with minimum centres of 150mm.
The assembly is actuated to the transfer position by a double acting guided 63mm bore x 25mm stroke pneumatic cylinder.
Available in twin or triple band transfers.
Just one cylinder is required for twin and triple band transfers.
Air consumption for double stroke 0.59 litres free air per cycle (operated at 3 bar with 35kg lift capacity).
Belts are truly endless timing belts with co-extruded backing.
Independently driven from its own geared motor unit.
Transfer up position is 15mm above top of rollers, down position is 10mm below top of rollers.
Maximum cycle time 25 operations per minute.
Maximum capacity is 15 kg per belt strand up to a total of 45 kg.
Standard widths available: 412mm, 462mm, 512mm, 612mm, 762mm and 912mm. Others available upon request.
