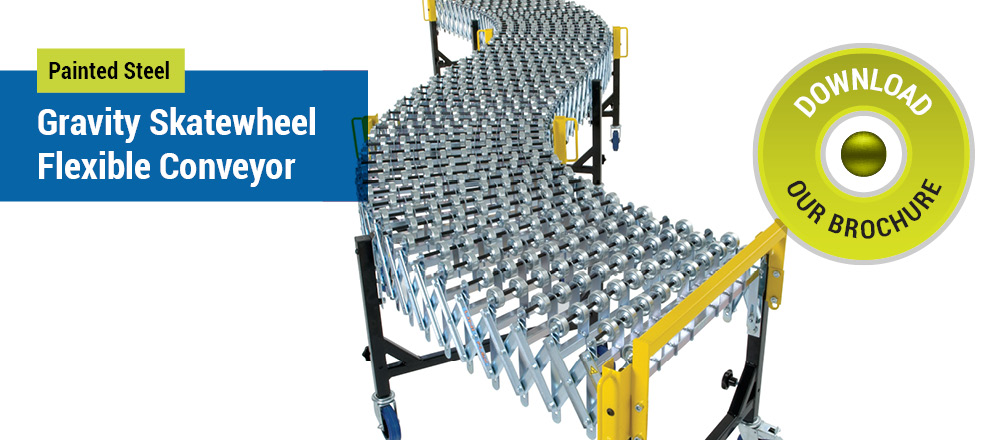

Painted Steel Gravity Skatewheel Flexible Conveyor

Overview

A rugged conveyor ideally suited for many roles from packaging and flexible assembly lines to loading and unloading of trucks and containers. The conveyor is easy to move around on heavy duty castors and simply compacts to a quarter of its size when not in use.

  • Support legs are fully adjustable from 750mm to 1040mm as standard.
  • 300 Kg’s load capacity per linear metre based on a level working height.
  • Standard conveyor widths of 450mm, 600mm, 750mm and 900mm.
  • All support legs have welded braces for additional strength and rigidity.
  • Heavy duty castors – 125mm x 36mm swivel castors for maximum manoeuvrability. The castor wheel incorporates a foot operated brake.
  • Roller centres – 125mm as standard when the conveyor is fully extended.  Optional 75mm and 100mm roller centres can br supplied for the conveying of smaller packages or cartons.  Please note optional roller centres will affect the conveyor compacted length.

Standard Length Compacted to Expanded.

1.08 metre – 3.75 metre
2.12 metre – 7.50 metre
3.15 metre – 11.25 metre
4.19 metre – 15.00 metre
4.88 metre – 17.50 metre

Technical Information

Type Load Conveyor Widths Dia. Rollers
Gravity Skatewheel 300kg per linear metre* 450, 600, 750 or 900mm Skatewheel – 49mm
