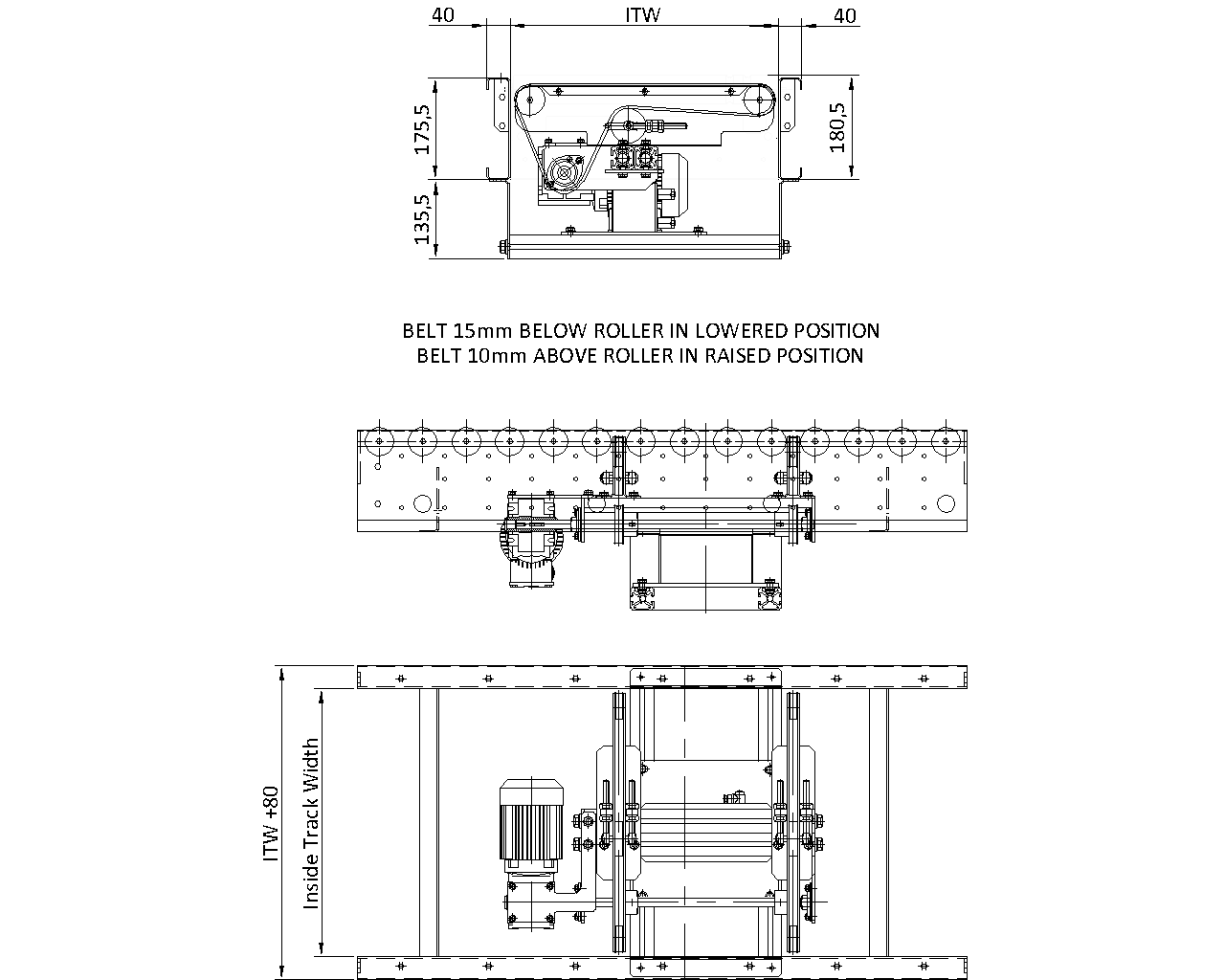

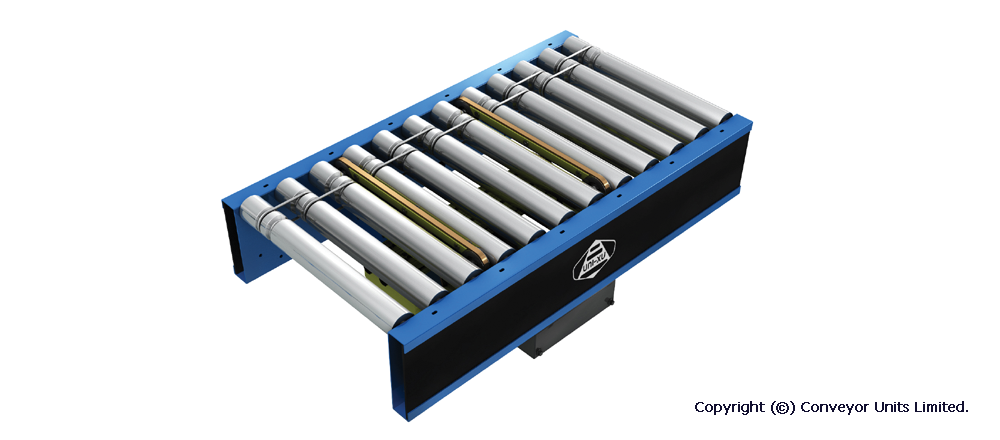

Painted Steel 24V Motorised Roller Conveyor ‘O’ Ring – Belt Transfer Unit
Overview
Available for XU30, XU60 and XU90.
‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
The minimum belt centres are 150mm.
Maximum of 25 operations per minute.
Maximum capacity is 15kg per belt strand up to a total of 45kg.
Independently driven from a geared motor unit via pulleys on a separate shaft.
The rise and fall of chains is actuated by a double acting pneumatic cylinder(s).
Available in twin or triple belt transfers.
Polyurethane truly endless belt with co-extruded backing.
Total air consumption per operation 1.04 litres per cylinder.
Standard widths available: 412mm, 462mm, 512mm, 612mm, 762mm and 912mm. Other widths available on request.
