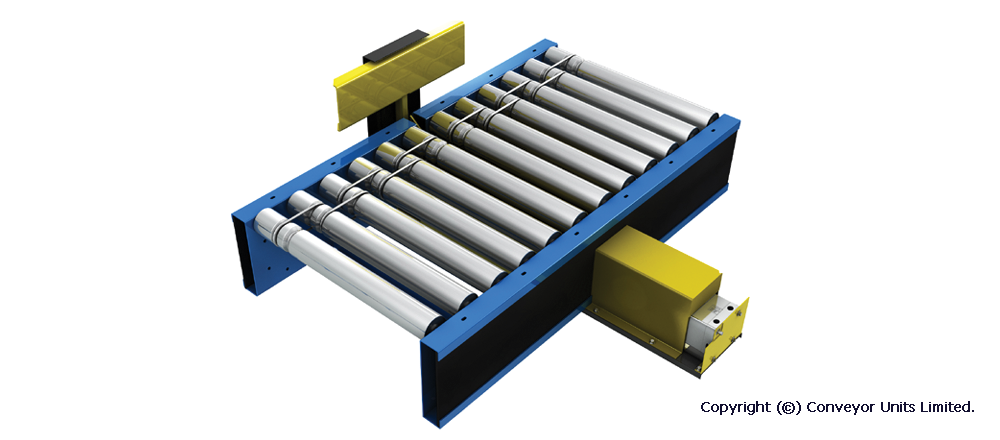

Painted Steel 24V Motorised Roller Conveyor ‘O’ Ring – Pusher Unit

• Products • Motorised Rollers • Painted Steel 24V Motorised Roller Conveyor ‘O’ Ring – Pusher Unit
Design your own conveyor system
Book a factory tour
Book a free onsite spares survey
Download our brochures

Overview

  • Available for XU30, XU30S, XU60 and XU90.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • Comprises a rodless cylinder which has an arm attached to its saddle.
  • When the cylinder is energised the arm traverses across the track width and pushes products onto a conveyor at 90 °.
  • Incorporates a double-acting pneumatic air cylinder, 32mm bore.
  • Total air consumption for double stroke 7.76 litres per cylinder based on 700mm stroke.
  • Suitable for moving a maximum load of 25kg.
  • Maximum operations 20 per minute. Please contact us for off set loads and higher throughputs.

Videos

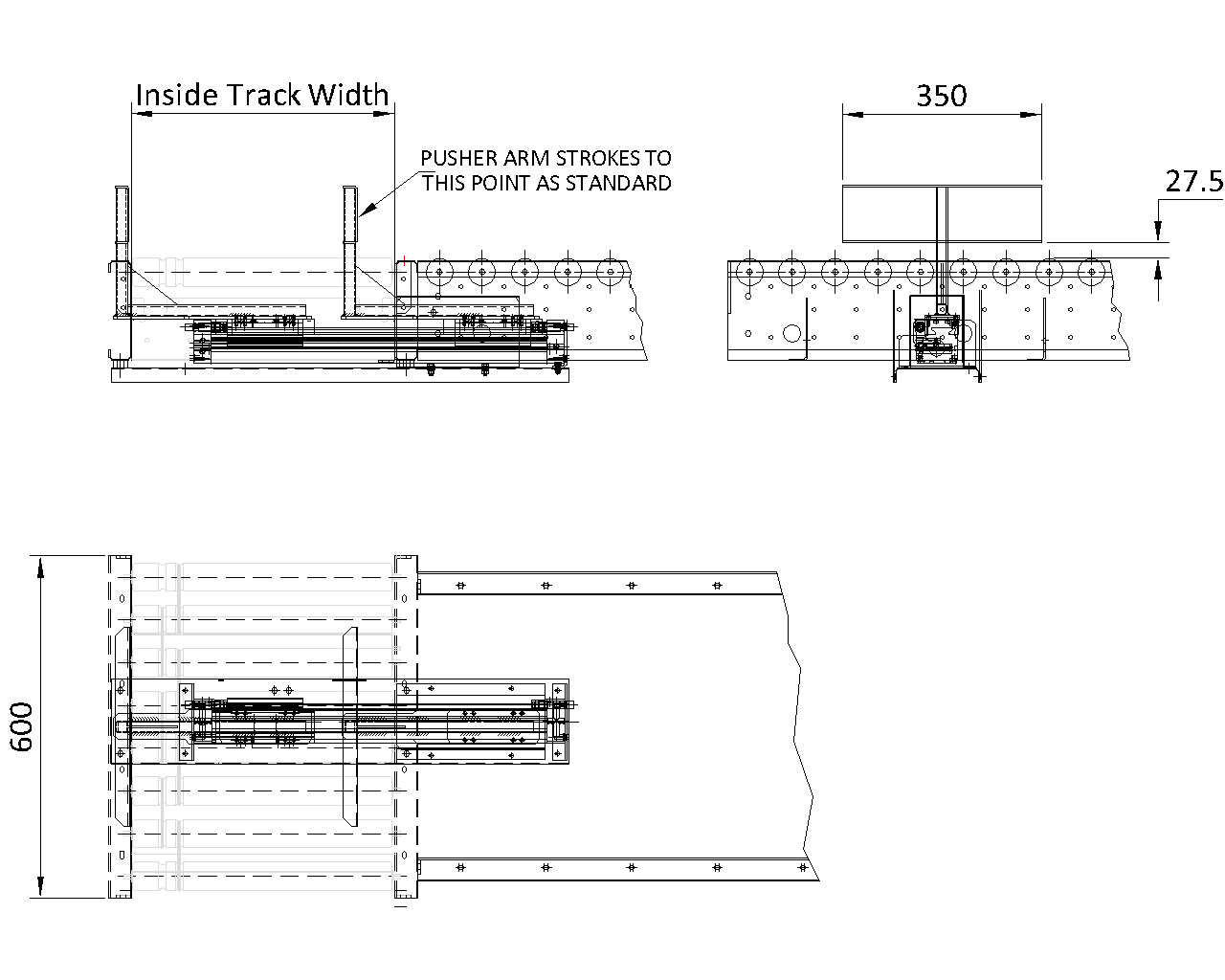

Painted Steel 24V Motorised Roller Conveyor ‘O’ Ring – Pusher Unit Technical Drawing
