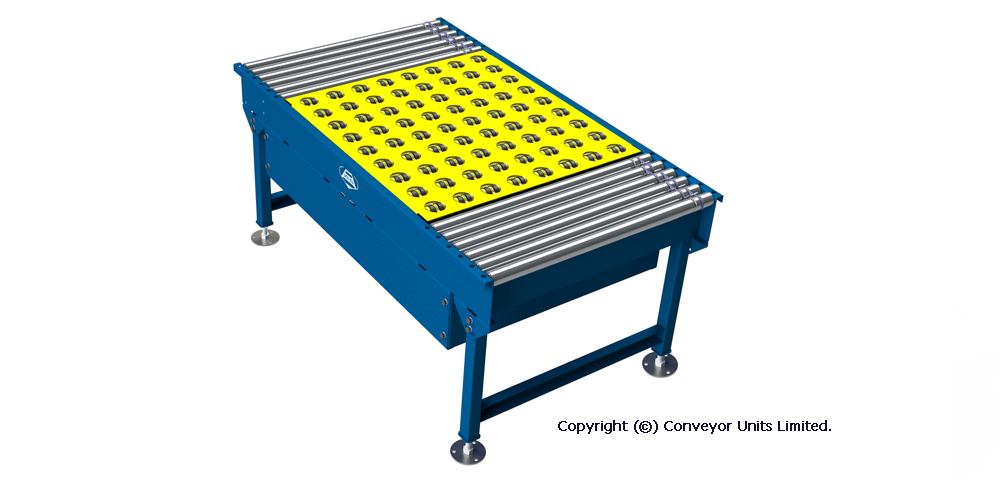

Painted Steel Electric Post & Parcel Conveyor – Electric Switch Sorter

• Products • Post & Parcel Conveyor • Painted Steel Electric Post & Parcel Conveyor – Electric Switch Sorter
Design your own conveyor system
Book a factory tour
Book a free onsite spares survey
Download our brochures

Key Features:

  • No air required!
  • 1680mm module length.
  • Fitted with two underslung AC motor drives.
  • 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • Rollers set at 60mm pitch.
  • Load capacity up to 80kg/m.
  • Sort capacity of up to 4200 products per hour.
  • Wheel pattern split into 6 independent zones, giving capability to divert, merge, centralise, pre-sort.
  • The sorter wheels are independently driven from a 0.37 kW SEW motor, to give speeds up to 110 metres per minute.
  • The 230/400V AC drives, when used with frequency inverters provide increased drive to both rollers and wheels.
  • We recommend that an inverter is fitted to enable fine tuning of speed required to suit your application.
  • Incorporates six 24V DC electric actuators for the rotation of the wheels.
  • Supplied with all actuator controllers housed in a single control box.
  • 30° switching angle.
  • Normally used in conjunction with a 30° mitre section.
  • Accumulation is not advisable on these units.
  • Minimum product size 200mm x 200mm.
  • Standard width available: up to 912mm.
