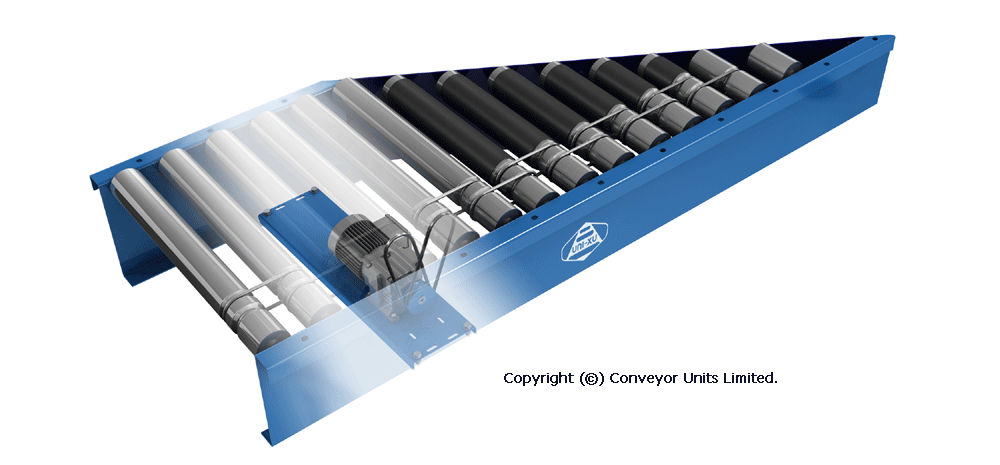

Mitre

  • 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • 50mm Dia. rollers fitted at 60mm, 75mm, 100mm or 150mm roller pitch.
  • Band driven to top rollers direct from pulley on motor shaft.
  • 30° and 45° angle.
  • Load capacity of 80kg/m.
  • Fitted with 1 or more 0.09kW Motor Gearbox units.
  • Standard speeds up to 90 metres per minute.
  • Available with either 230V (delta) or 400V (star) 3ph motors to suit inverter choice.
  • Multiple drives can be connected from one inverter.
  • Standard widths available: up to 912mm.
  • Can be used as an inbound or outbound mitre – fully reversible.
