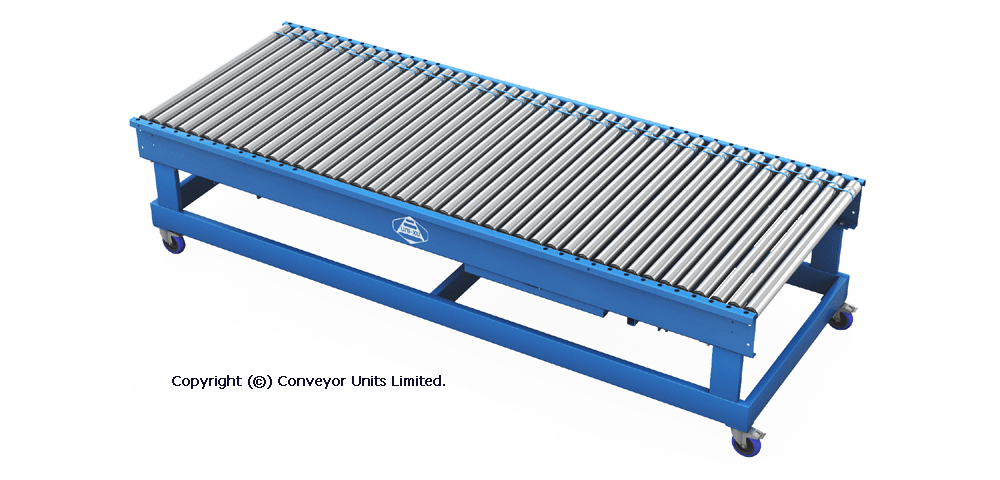

Painted Steel Post & Parcel Mobile Straight Track

• Products • Post & Parcel Conveyor • Painted Steel Post & Parcel Mobile Straight Track
Design your own conveyor system
Book a factory tour
Book a free onsite spares survey
Download our brochures

Key Features

  • 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • 50mm Dia. x 2mm thick rollers are fitted with precision bearings.
  • Drive capacity XU90 12kg per roller.
  • Available in 60mm, 75mm, 100mm and 150mm roller pitch.
  • Low pressure accumulation.
  • Drive up to 36 metres from one 0.75Kw drive unit.
  • Standard speeds of 12, 15, 20, 25 and 30 metres per minute.
  • Suitable for conveying very small products with a minimum product size of 180mm sq.
  • Supplied in 6 metre fully assembled lengths as standard. Other lengths available on request.
  • Standard width available: Up to 912 mm.
  • Full product testing available in our showroom.
