Painted Steel Post & Parcel Switch Sorter
•
Products
•
Post & Parcel Conveyor
•

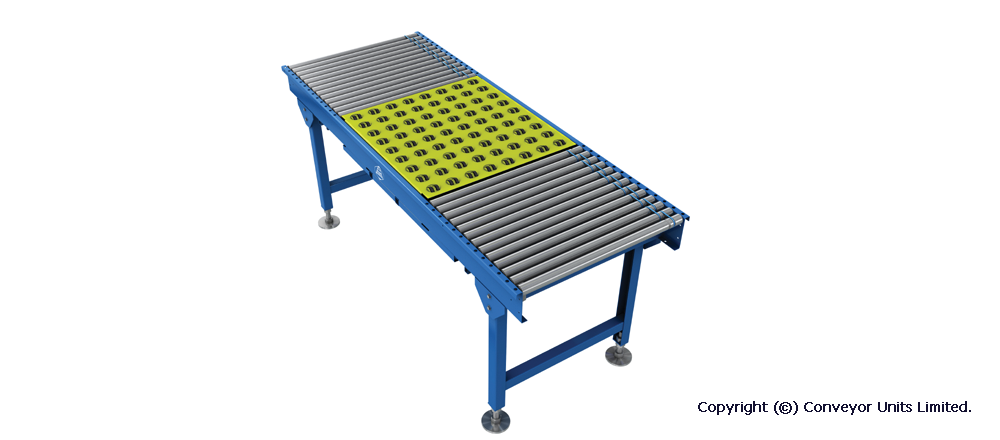

Painted Steel Post & Parcel Switch Sorter
Key Features
Fitted with two underslung AC motor drives.
178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
Rollers set at 60mm pitch.
Load capacity up to 80Kg/m.
Standard speeds up to 110 metres per minute.
Sort capacity of up to 4200 products per hour.
Wheel pattern split into 6 independent zones, giving capability to divert, merge, centralise, pre-sort.
The sorter wheels are independently driven from a 0.37 kW SEW motor, to give wheel speeds up to 110 metres per minute.
230/400V AC drives, when used with frequency inverters, provide positive drive to both rollers and wheels.
We recommend that an inverter is fitted to the gearbox to enable fine tuning of the speed that will be required to suit your application.
Incorporates double acting pneumatic cylinders.
Can be supplied right handed, left handed or bi-directional.
30° switching angle.
Normally used in conjunction with a 30° mitre section.
Accumulation is not advisable on these units.
Minimum product size 200mm x 200mm.
Standard width available: Up to 912mm.
