Designed specifically to meet the exacting standards of a hugely demanding Post and Parcel handling industry, our new range of Belt Conveyors and multi-functioning Switch Sorter units provide the robust, efficient and precise product movement this sector insists upon. Conveying a variety of shapes, sizes and loads up to 80Kg/Metre, this high performance, reliable range of equipment is modular in design, providing easy installation and integration across the UNI-XU® range of products. Maintenance access is quick and simple.
Overview
| Key Post and Parcel Belt Conveyor Features | Benefits |
|---|---|
| Modular Design | Truly independent beds. Easy to install and configure. |
| 3mm thick steel skid decks | Capable of handling loads up to 80kg/m |
| Direct Drive from motors up to 3kW in power | Ease of motor change, no chains and sprockets to wear and capable of long runs / heavy loads. |
| 100 mm dia End Terminal Rollers | High strength while handling small loads. |
| Fixed – non rotating – bosses on End Terminals | Improved operator safety. |
| Change of Direction chain transmission can be either side. | Ease of access for maintenance. |
| Rubber Lagged drive drums. | Positive non slip drive transmission. |
| Key Post and Parcel Switch Sorter Features | Benefits |
|---|---|
| Modular Design | Truly independent beds. Easy to install and configure. |
| Sort up to 4200 parcels per hour | Increased parcel handling capacity. |
| Wheel pattern split into 6 independent zones | Multi-function capability of divert, merge, centralise, pre-sort. |
| 230 / 400 V AC drives | AC drives provide increased, controllable, drive to both rollers and wheels when used with frequency inverters. |
| Key Post and Parcel Underslung AC Motor Drive Conveyor Features | Benefits |
|---|---|

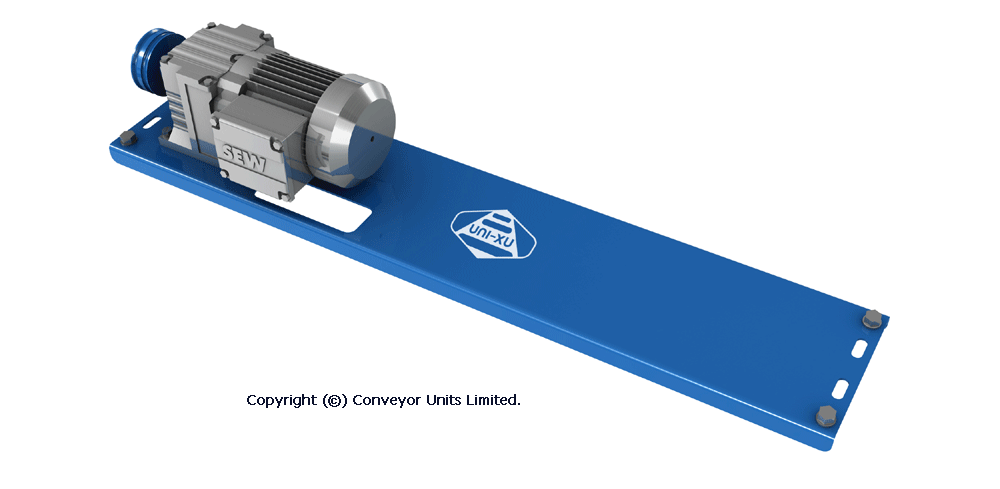

| Underslung Motor Gearboxes drive small dedicated sections of the conveyor. | Enables individual control over small zones of the conveyor. |
| Common parts used between modules. | Common and fewer spares required. |
| No timing belts, chains or sprockets. | Reduced maintenance. |
| Strong, quiet drive to top rollers. | Positive drive for packages of a wide weight range and giving a quiet working environment for operators. |
| Strong 0.09kW of power from each drive (0.37kW on rubber taper roller bend). | When driven with inverters, desired speed can be well maintained which aids accurate product tracking. |
| Bend rollers are available with either plastic or rubber true taper rollers. | ABS plastic offers impact resistance and durability. Rubber covered provides greater level of grip and positive control of product speed – required when tracking products. |
Ancillary modules include:
