Painted Steel Post & Parcel Mobile Bend Lineshaft

• Products • Post & Parcel Conveyor • Painted Steel Post & Parcel Mobile Bend Lineshaft
Design your own conveyor system
Book a factory tour
Book a free onsite spares survey
Download our brochures

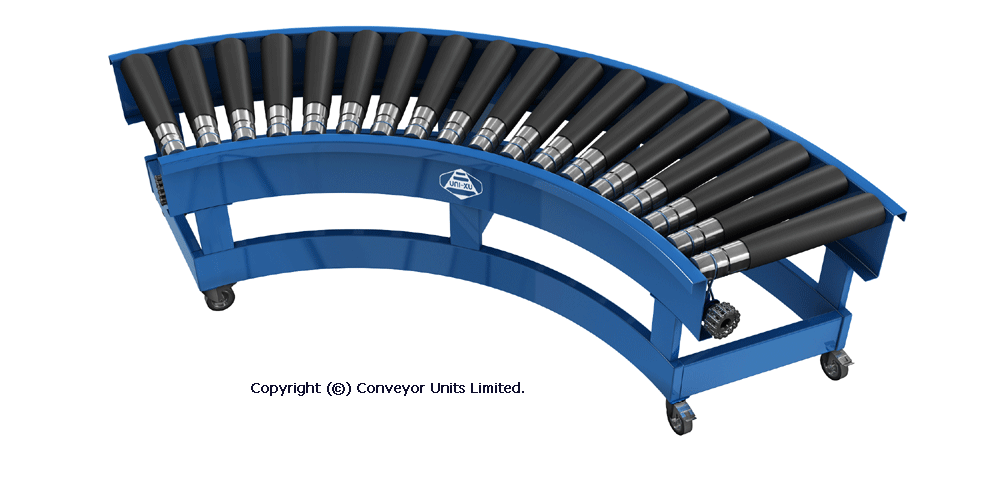

Bend Unit

  • 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • All bends have true taper plastic sleeved rollers to ensure correct load orientation and are double grooved at the drive belt positions
  • Drive capacity XU90 12kg per roller.
  • Available in 75mm roller pitch (on inner rail).
  • Standard speeds of 12, 15, 20, 25 and 30 metres per minute.
  • Heavy duty XU90 belts are used throughout.
  • Bend units can be supplied fitted with geared motor units, (45° and 60° only).
  • For smaller products intermediate rollers are available & supplied loose for on site fitting.
  • The lineshafts are inter-connected by constant velocity (needle roller bearings) universal joints, housed within a rubber gaiter.
  • All bends have an inside radius of 859mm.
  • Angles available 30°, 45° and 60°.
  • Accumulation not advised.
  • Standard width available: Up to 912mm.
