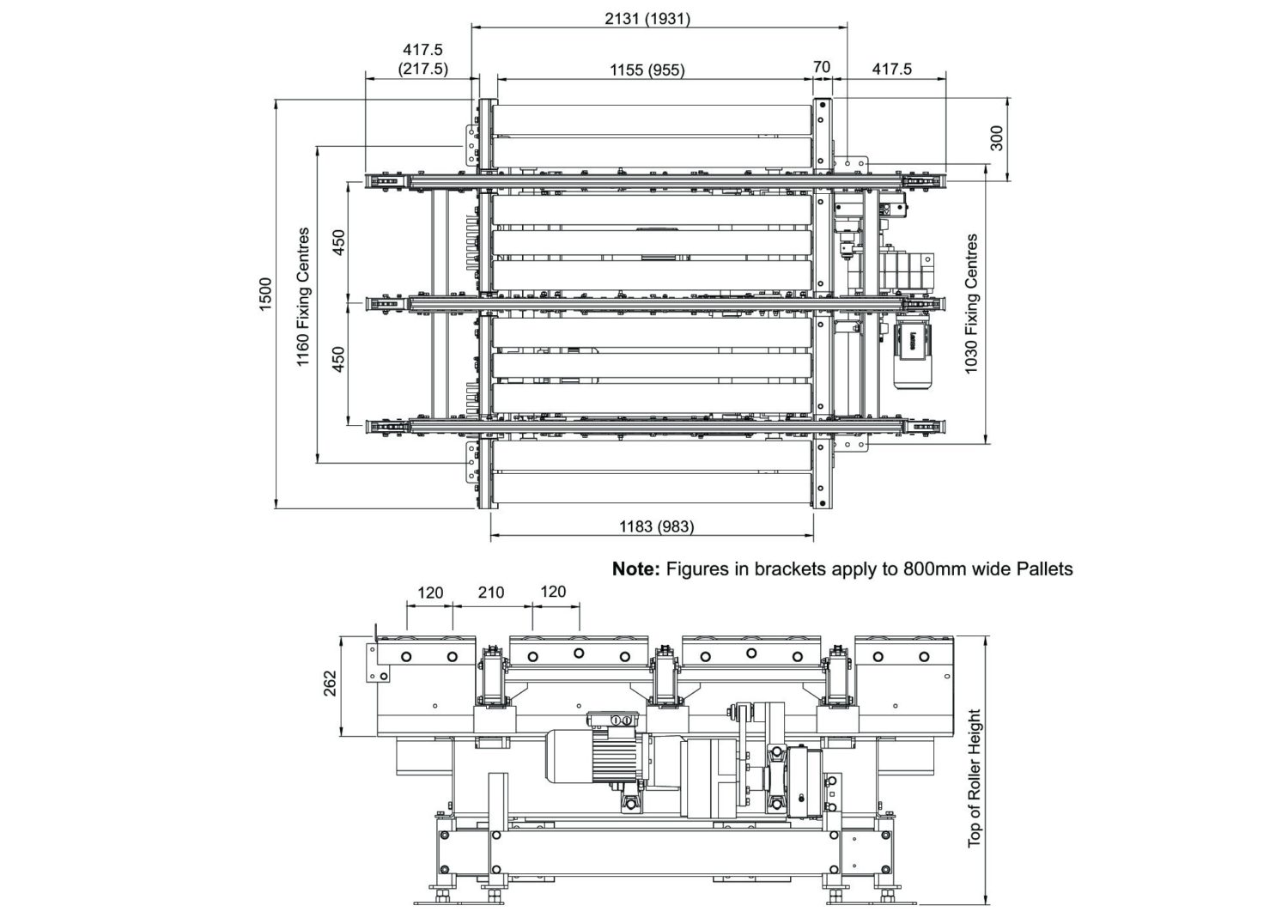

Painted Steel Pallet Handling Conveyor – Centre Chain Transfer


  • Combines the features and benefits of the roller systems and chain conveyor in one module.
  • Nominal roller pitch of 150mm for all pallet types, offering exceptional support for pallets during the transfer operation.
  • Pallets can be received and transferred in either direction.
  • Load capacity of 1500kg per pallet.
  • Electric lift action.
  • Bi-directional chain available as standard.
  • Range of heights available from 500mm – 1150mm top of roller.
  • Motors available – roller conveyor 0.37kW, 0.55kW, 0.75kW, 1.1kW, lift transfer 0.75kW.
  • Pallet size – 1200mm on leading edge x 800 / 1000mm long on in-feed chains. 800 x 1000mm leading edge x 1200mm long on rollers.
  • Speeds available – 12 and 18 metres per minute.
  • Up to 208 pallet transfers per hour.
  • Roller and chain motors supplied non braked as standard. (Braked also available).
  • Lift motor supplied braked as standard.
