Painted Steel Pallet Handling Conveyor – Chain Straights

Overview

  • Bi-directional operation.
  • Available in twin and triple strand chain versions.
  • Chain tension is adjusted quickly and easily without removing any guards.
  • Load capacity of 1500kg per pallet.
  • 4mm thick side channels.
  • ¾” pitch flat-sided chain running on low friction, hard-wearing polymer guide strips.
  • Ability to run cables and pneumatics inside channel.
  • Chain in same lateral position on each module – giving a smooth, clean appearance and aiding cable runs.
  • Chains positioned for optimum pallet support.
  • Range of heights available from 425mm – 1175mm top of chain.
  • Motors available – 0.75 kW, 1.1 kW, 1.5 kW, 2.2 kW and 3.0 kW available.
  • Standard lengths available – 1300mm to 3600mm in 50mm increments.
  • Pallet size – 1200mm leading edge x 800mm / 1000mm long pallets.
  • Speeds available – 12 and 18 metres per minute.
  • Motors supplied non braked as standard. (Braked also available).

Technical Information

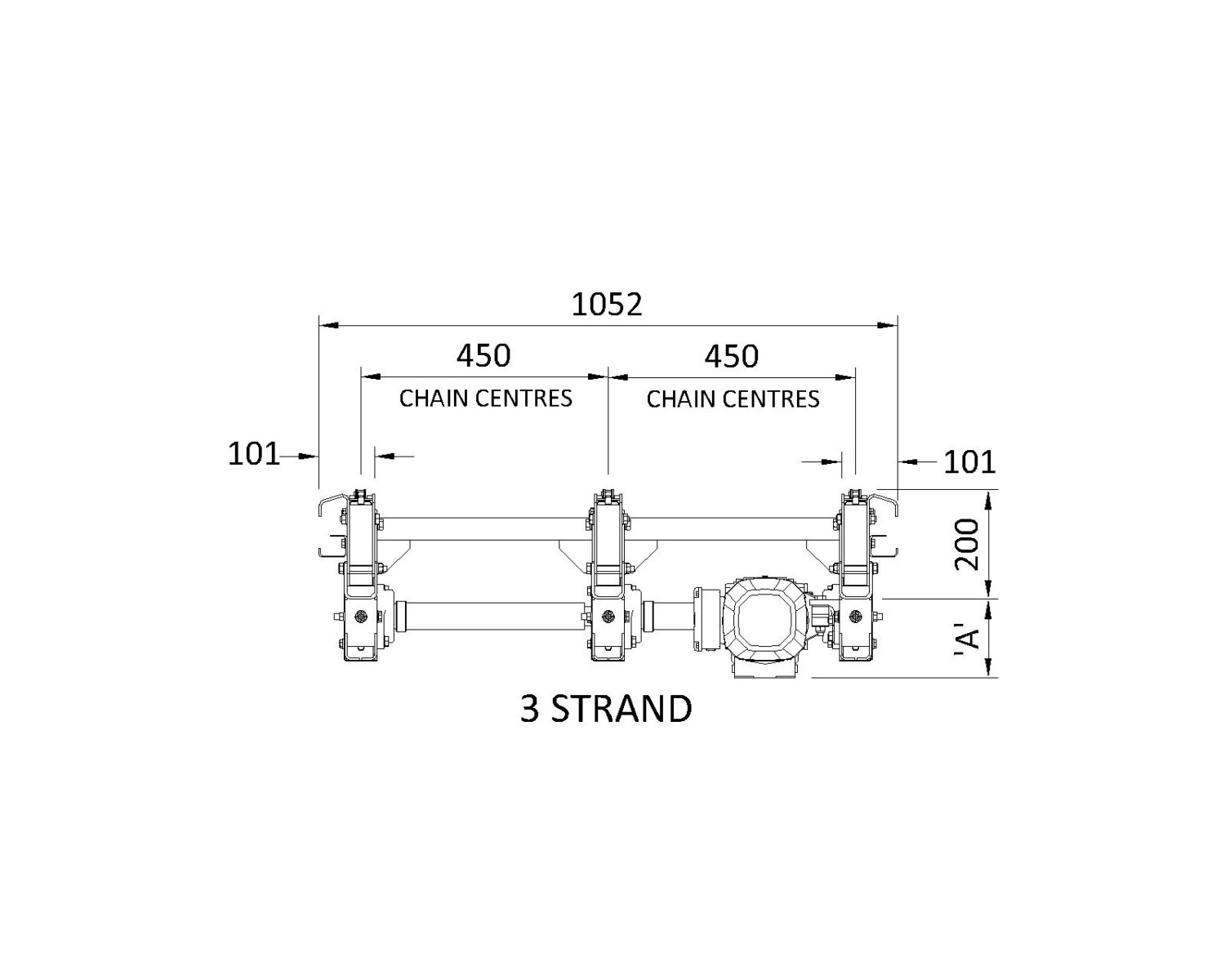

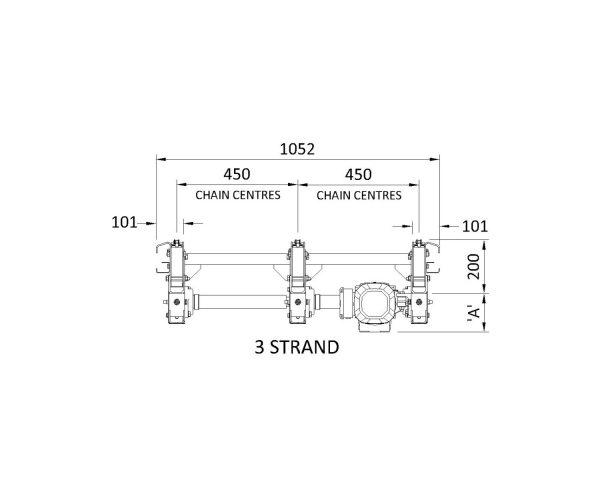

Dimension ‘A’
Load Capacity (kgs) 3 Strand
1500 143
3000 171
4500 211
