Overview

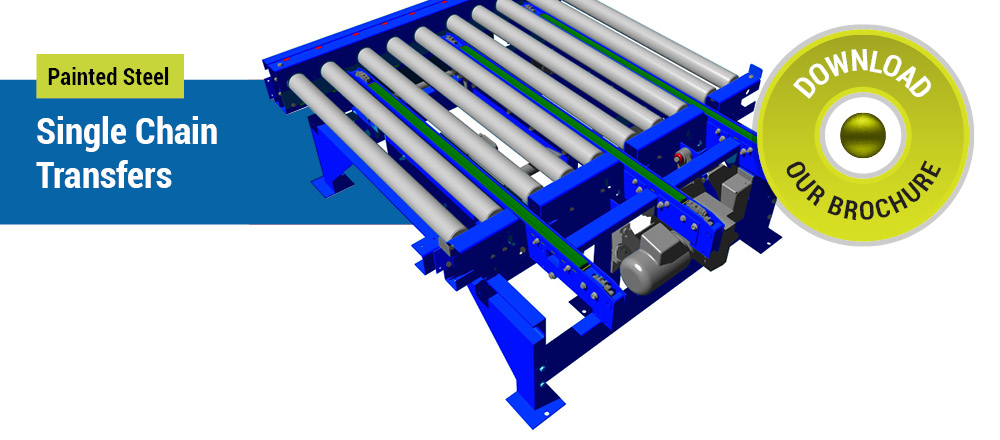

- Combines the features and benefits of the roller systems and chain conveyor in one module.
- Nominal roller pitch of 150mm for all pallet types, offering exceptional support for pallets during the transfer operation.
- 3mm thick steel rollers with steel sprockets.
- Load capacity of 1500kg per pallet.
- Electric lift action.
- Bi-directional chain and rollers as standard.

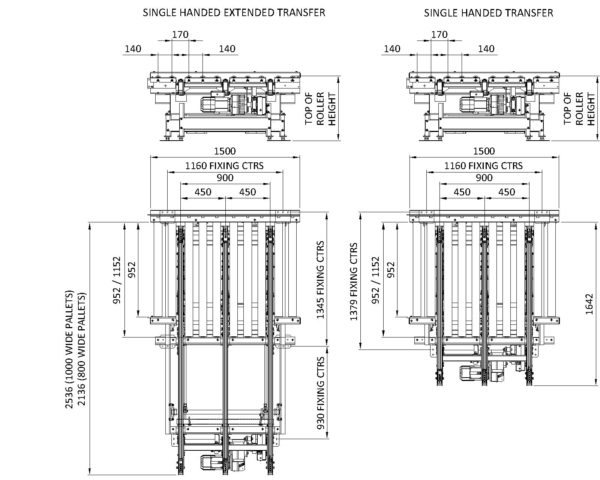

- Single handled transfer / extended transfer unit.
- Range of heights available from 425mm – 1000mm top of roller.
- Motors available – chain conveyor 0.75 kW, 1.1 kW, lift transfer 0.75 kW, roller conveyor 0.37 kW, 0.55 kW.
- ¾” pitch flat sided chain.
- Pallet Size – 800 / 1000mm leading edge on rollers x 1200mm long. 1200mm leading edge x 800 / 1000mm long on chains.
- Speeds available – 12 and 18 metres per minute.
- Up to 213 pallet transfers per hour.
- Roller and chain motors supplied non braked as standard. (Braked also available).
- Lift motor supplied braked as standard.
Video
Technical Information
| Speed (Meters per minute) |
Roller Conveyor Bed |
Chain Transfer |
Lift Motor |
| Motor Power (kW) |
Full Load Current (A) |
Motor Power (kW) |
Full Load Current (A) |
Motor Power (kW) |
Full Load Current (A) |
| 12 |
0.37 |
0.95 |
0.75 |
1.9 |
0.75 |
1.9 |
| 18 |
0.55 |
1.4 |
1.1 |
2.8 |
– |
– |
