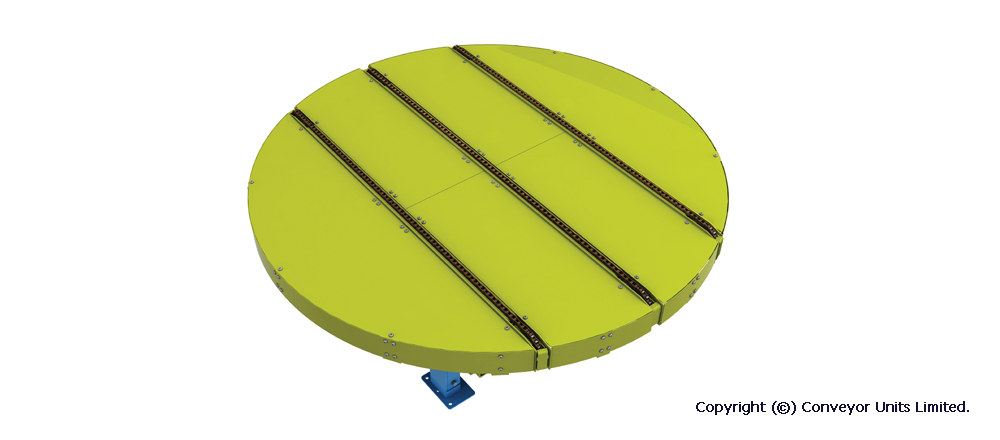

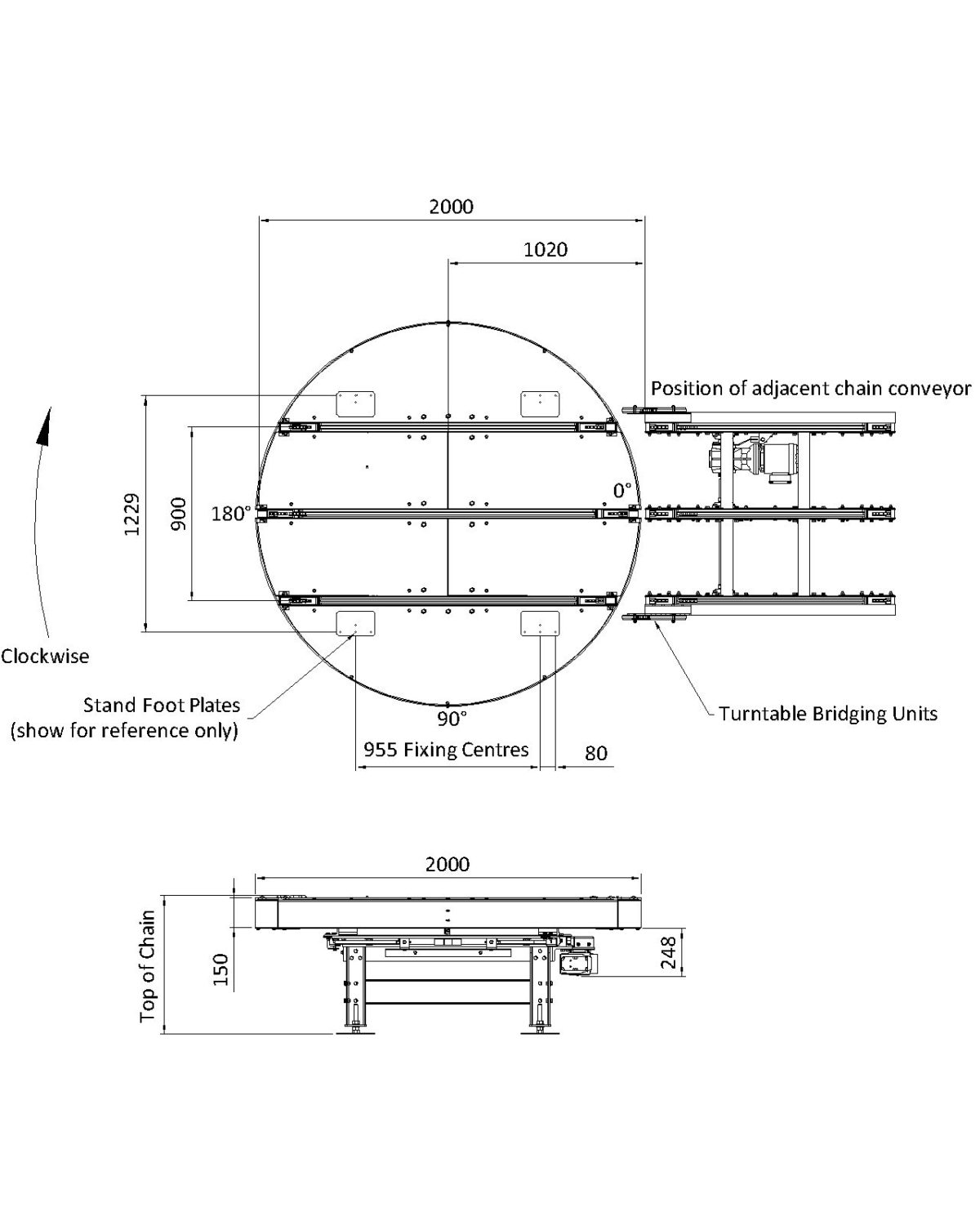

Painted Steel Pallet Handling Conveyor – Chain Turntable


  • Designed to change the direction of pallet travel by rotation of the pallet through any angle from 90° up to 180°, whilst keeping the relationship of the pallet runners to the chain strands the same.
  • Two rotation speeds of 2rpm and 4rpm.
  • Range of heights available from 425mm – 1175mm top of chain.
  • Motors available – chain conveyor 0.75 kW (12 metres per minute), chain conveyor 1.1 kW (18 metres per minute).
  • Pallet size – 1200mm leading edge x 800mm (1000Kg max) / 1200mm leading edge x 1000mm (1500Kg max).
  • Up to 174 pallets per hour rotating 90°.
  • Three chains at 450mm centres.
  • Chain and turning motors supplied braked as standard.

Technical Information

Motor Power (kW) Full Load Current (A)
0.18 0.58
0.37 0.95
Motor Power (kW) Full Load Current (A)
0.75 1.9
1.1 2.8
