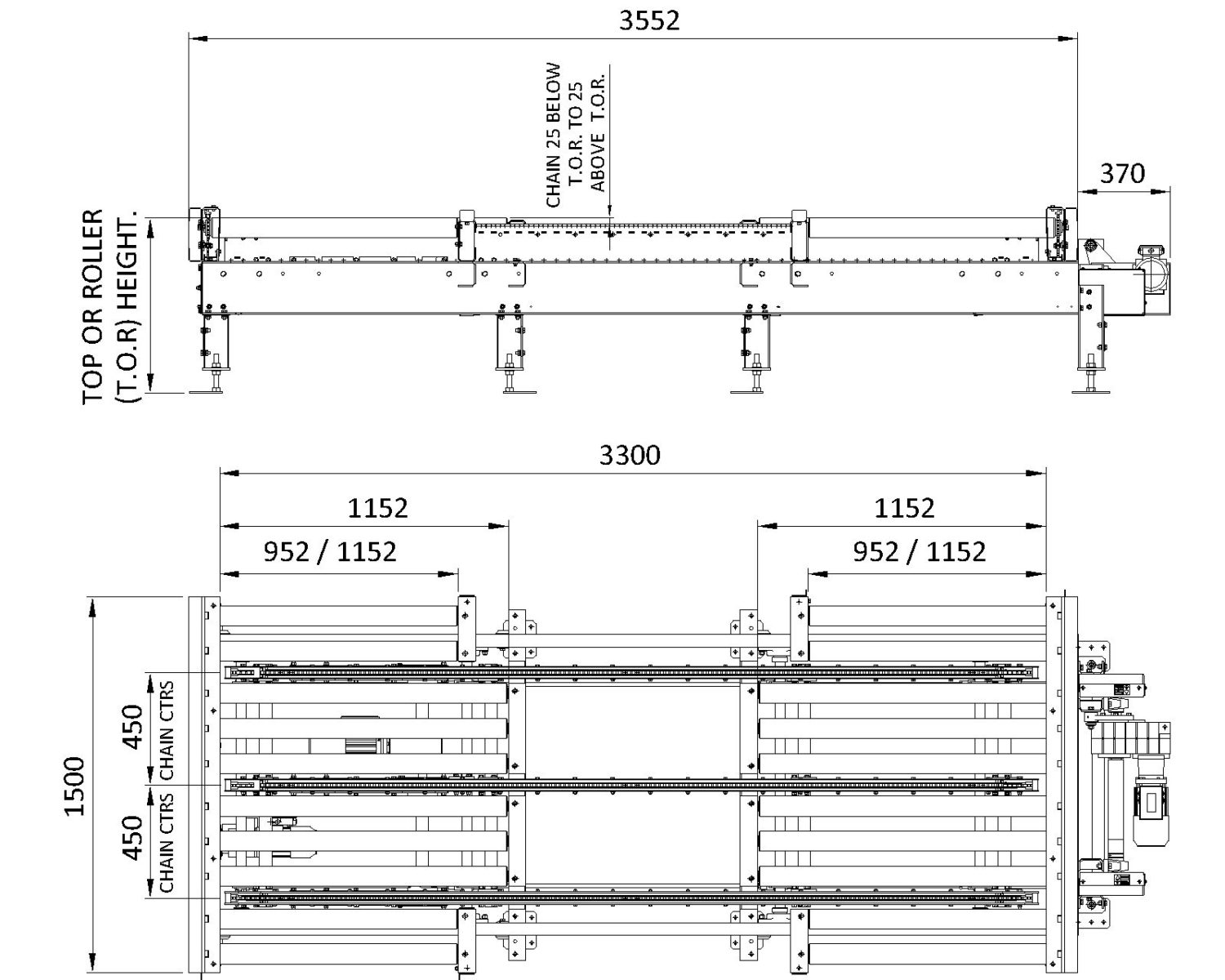

Painted Steel Pallet Handling Conveyor – Double Chain Transfer


  • Combines the features and benefits of the roller systems and chain conveyor in one module.
  • Nominal roller pitch of 150mm for all pallet types, offering exceptional support for pallets during the transfer operation.
  • Load capacity of 1500kg per pallet.
  • Electric lift action.
  • Bi-directional chain and rollers as standard.
  • Range of heights available from 425mm – 1150mm top of roller.
  • Motors available – roller conveyor 0.37 kW, 0.55 kW, 0.75 kW, 1.1 kW, lift transfer 0.75 kW.
  • Pallet size – 800 / 1000mm leading edge x 1200mm long on rollers. 1200mm leading edge x 800 / 1000mm on chains.
  • Speeds available – 12 and 18 metres per minute.
  • Up to 184 pallets transfers per hour.
  • Roller and chain motors supplied non braked as standard. (Braked also available).
  • Lift motor supplied braked as standard.
