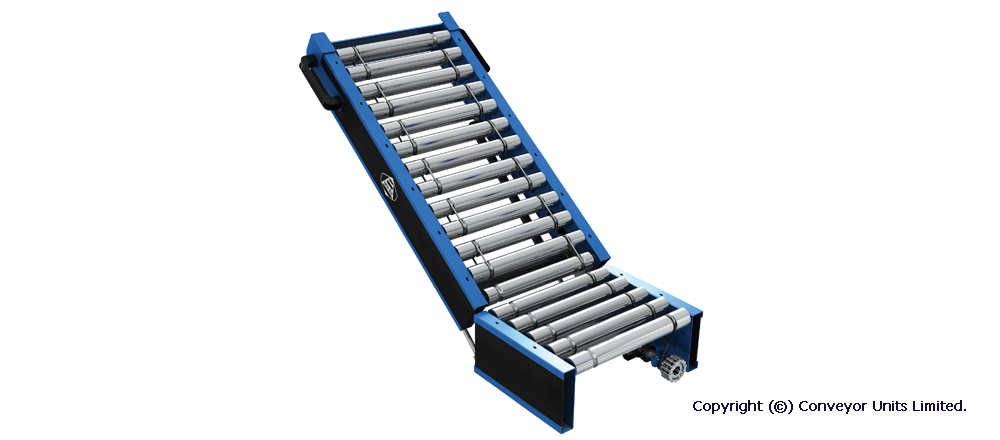

Painted Steel Powered Roller Lineshaft Conveyor – Lift-Up Gate Section

Overview

  • Available for XU60 and XU90.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • Fitted with plastic rollers slave driven from a 24V motorised roller.

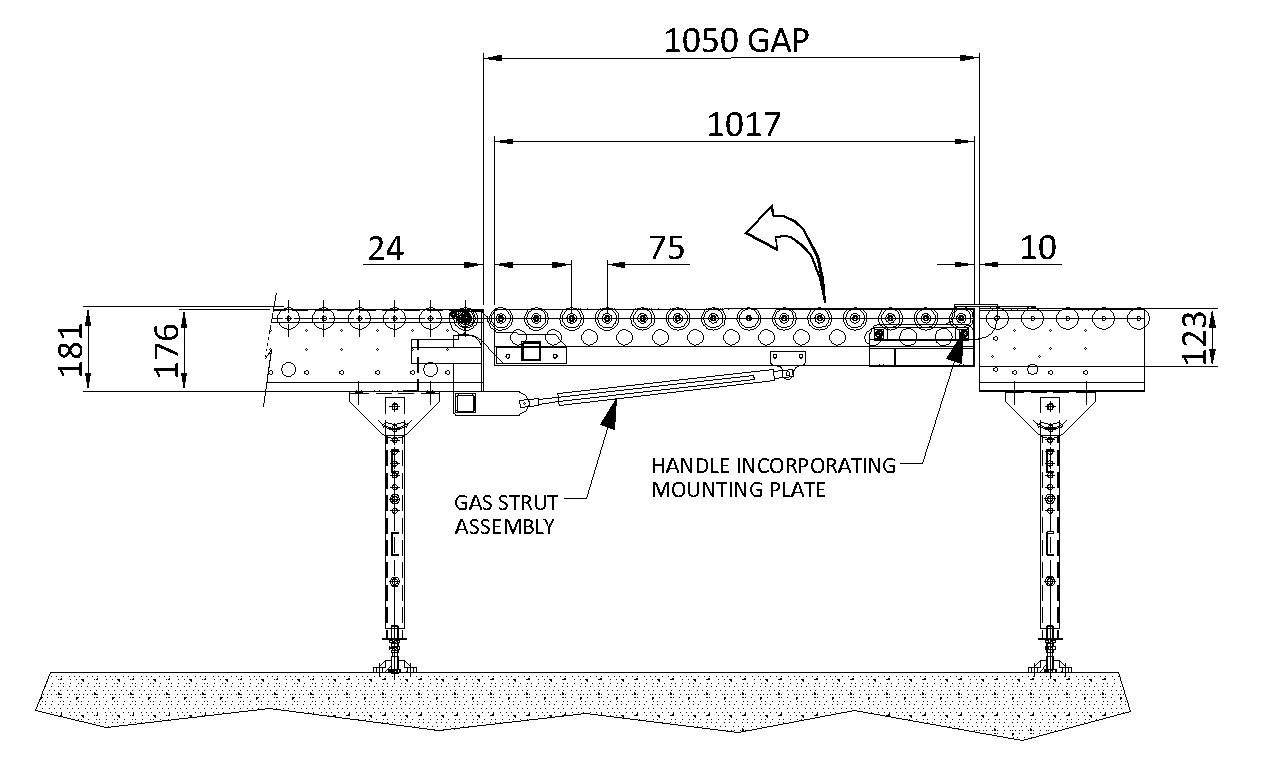

  • Fixed section of track must be 75mm roller pitch.
  • 900mm clear access given when gate is in the ‘up’ position.
  • To be used for mergency access only.
  • The lifting process is by manual operation, although the design does incorporate a spring assisted mechanism which controls and cushions the raising and lowering operation.
  • Drive cannot be taken through to the next section of conveyor and the gate assembly cannot be fitted to a bend.

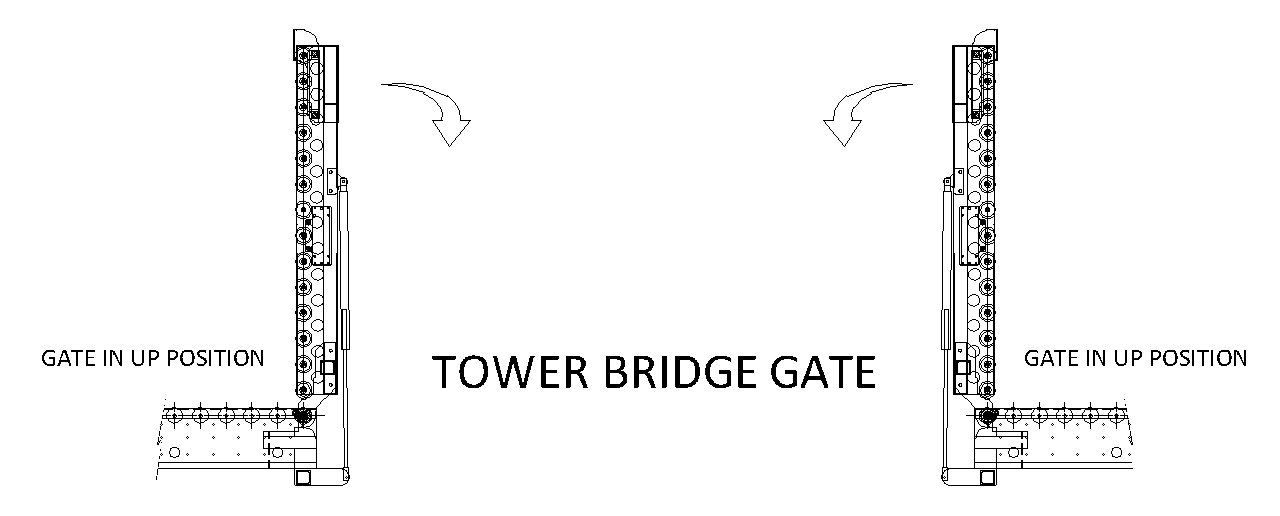

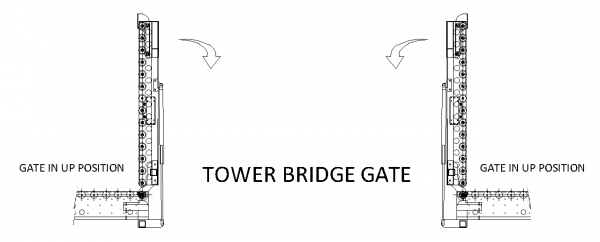

  • Can be positioned back to back to give a ‘TowerBridge’ arrangement.
  • Standard widths available: 412mm, 462mm, 512mm, 612mm, 762mm and 912mm. Other widths available on request.
