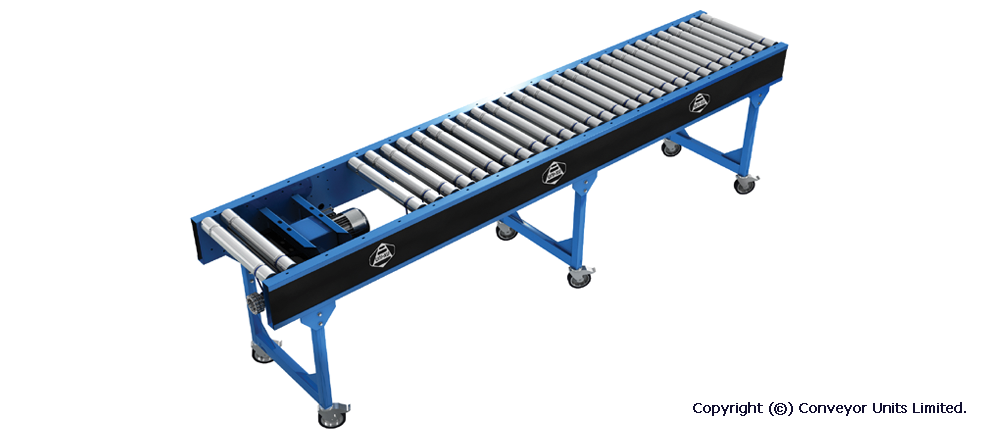

Painted Steel Powered Roller Lineshaft Conveyor – Mobile Unit

Overview

  • Available for XU30, XU30S, XU60 and XU90.
  • ‘C’ section framework, 176mm x 40mm x 2.5mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • Can be used should site conditions require sections of conveyor to be moved to allow for the passage of fork lift trucks or other equipment through the line of conveyor.
  • Braked swivel castors as standard.

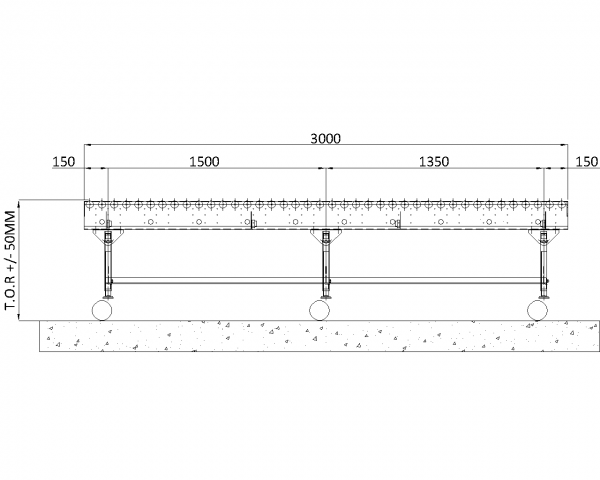

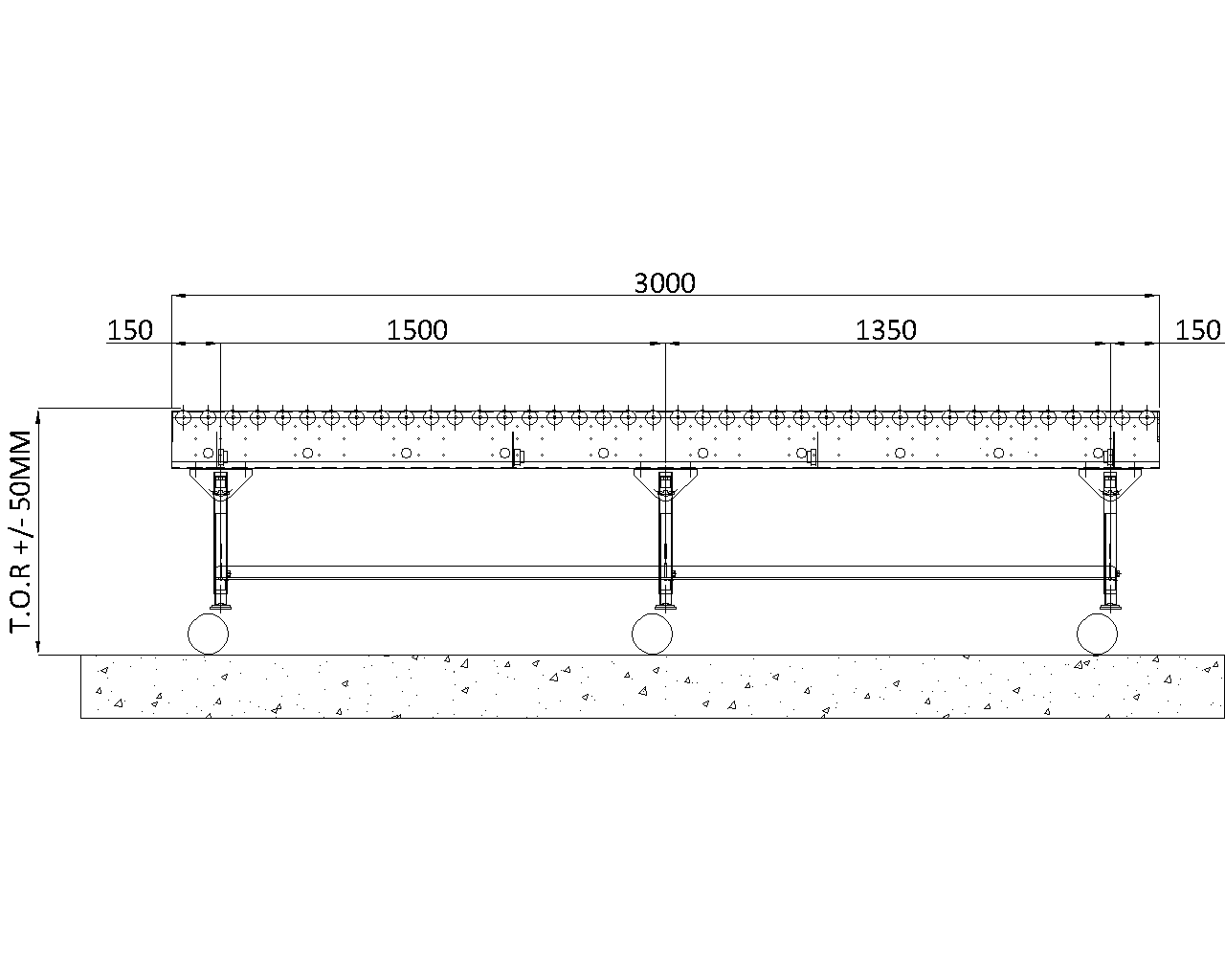

  • Variable heights and lengths available.
  • Standard widths available: 412mm, 462mm, 512mm, 612mm, 762mm and 912mm. Other widths available upon request.
