Painted Steel Powered Roller Lineshaft Conveyor – Stop and Line Brake Applications
•
Products
•
Lineshaft Powered Roller
•

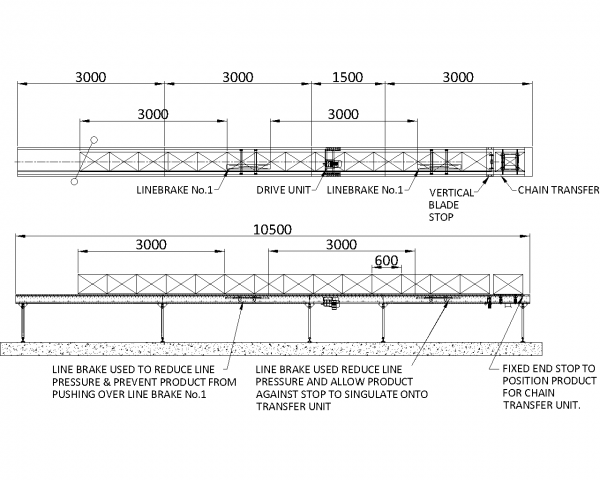

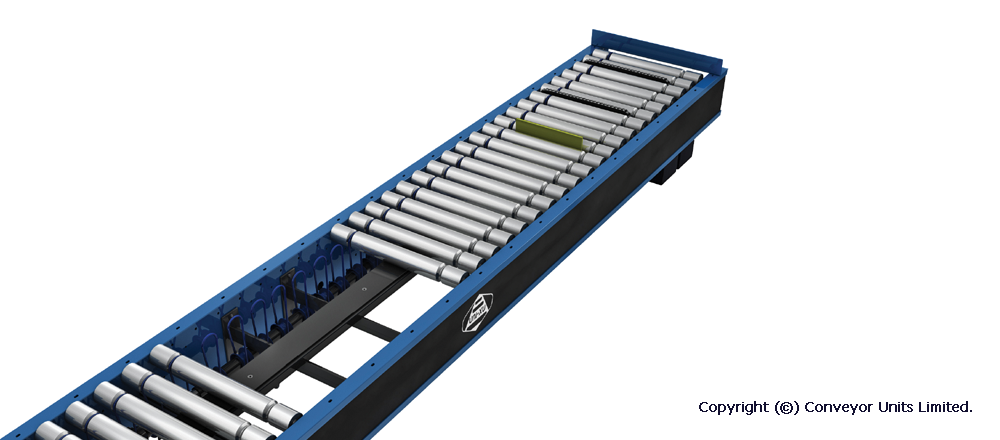

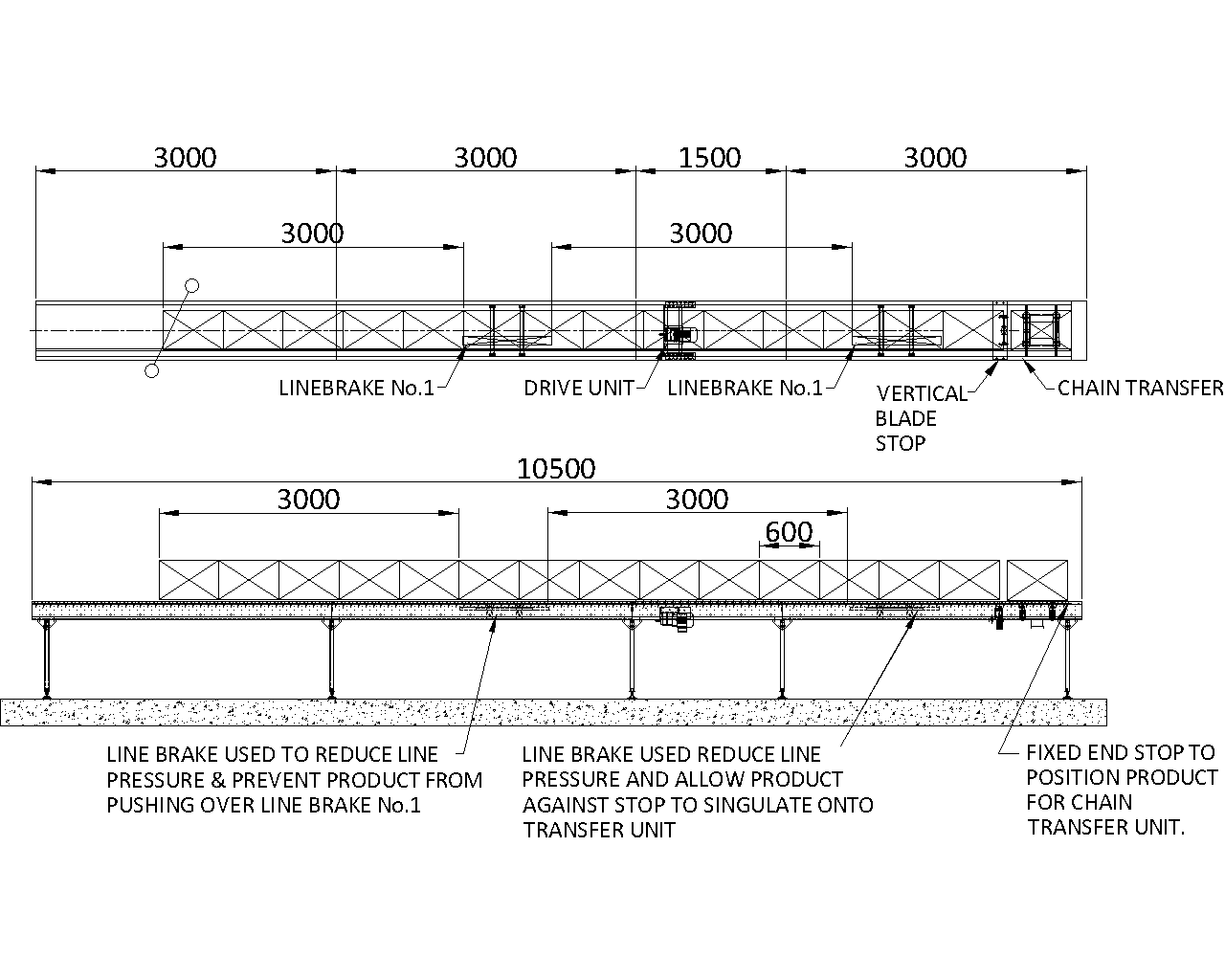

Painted Steel Powered Roller Lineshaft Conveyor – Stop and Line Brake Applications
Overview
Fast operation, capable of picking up minimum spaces between cartons.
Small bore / stroke cylinder ensures low usage of compressed air.
Standardised components ensure quality stops at low cost.
Quickly manufactured to fit any track width.
Spring return on rotating blade stop cylinder for safety.
Both vertical and rotating stop units include the necessary larger diameter drive spools to speed up rollers and create gaps between loads.
Easily repositioned on site if system requires change.
‘C’ section framework, 176mm x 40mm x 2.5mm having return folds for to retention of the facia.
‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
Lineshaft Powered Roller
Range
Powered Roller Lineshaft Conveyor
Powered Roller Lineshaft Conveyor – (Light Duty) XU30
Powered Roller Lineshaft Conveyor – (Light Duty) XU30S
Powered Roller Lineshaft Conveyor – XU60/90 – 75mm Pitch
Powered Roller Lineshaft Conveyor – XU60/90 – 100mm Pitch
Powered Roller Lineshaft Conveyor – XU60/90 – 150mm Pitch
Powered Roller Lineshaft Conveyor – Bend Unit
Lineshaft Powered Roller Conveyor – Geared Motor Drive Unit
Powered Roller Lineshaft Conveyor – Jump Chain Assembly
Powered Roller Lineshaft Conveyor – Mobile Unit
Powered Roller Lineshaft Conveyor – Incline / Decline Joint
Powered Roller Lineshaft Conveyor – Vertical Blade Stop
Powered Roller Lineshaft Conveyor – Line Brake
Powered Roller Lineshaft Conveyor – Stop and Line Brake Applications
Powered Roller Lineshaft Conveyor – Switch Sorter
Powered Roller Lineshaft Conveyor – 30° Mitre Section
Powered Roller Lineshaft Conveyor – 30° Merge Unit
Powered Roller Lineshaft Conveyor – Belt Transfer Unit
Powered Roller Lineshaft Conveyor – Vertical Lift Chain Transfer Unit
Powered Roller Lineshaft Conveyor – Lift-Up Gate Section
Guard Rail and Underguarding
Fixed End Stop
