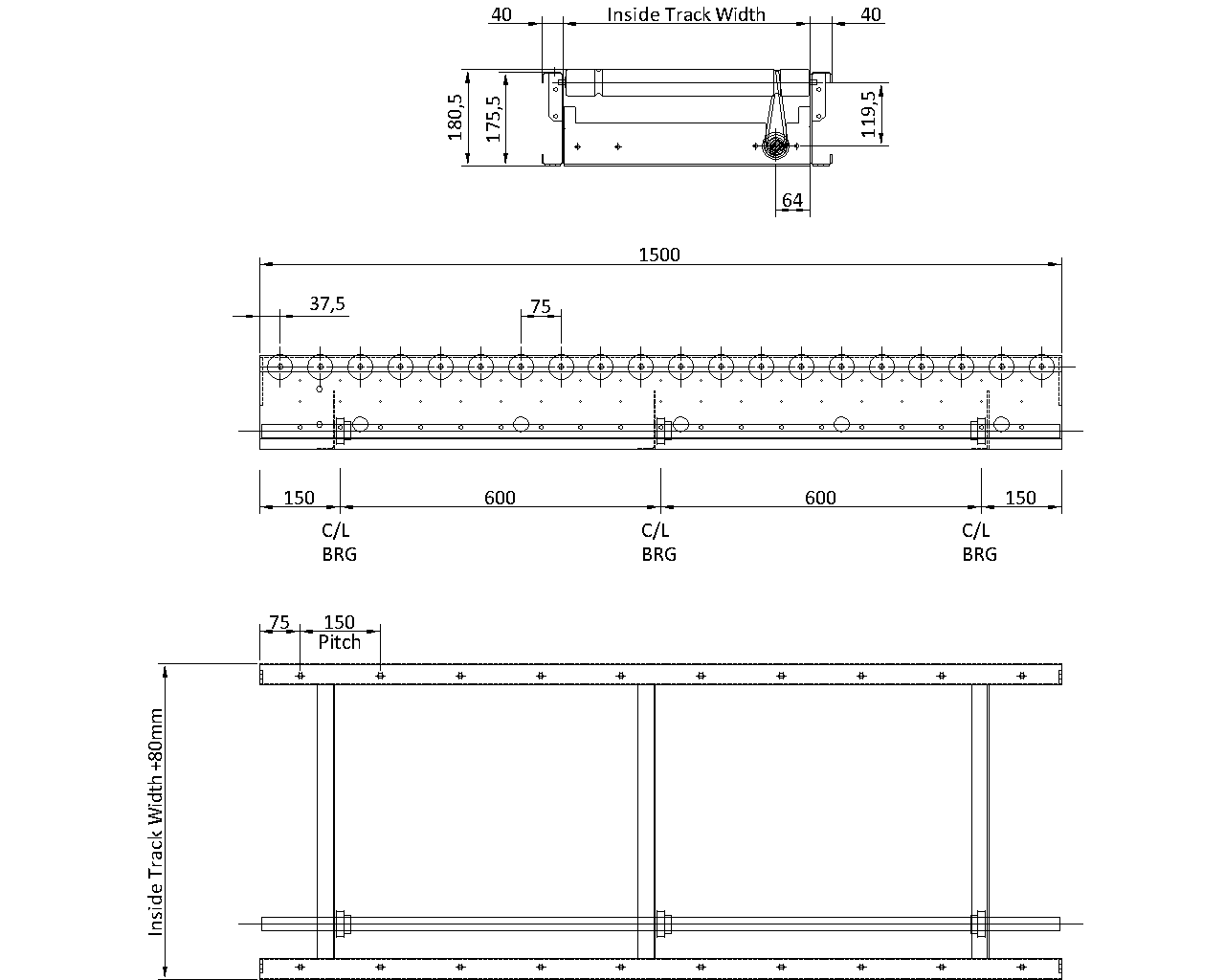

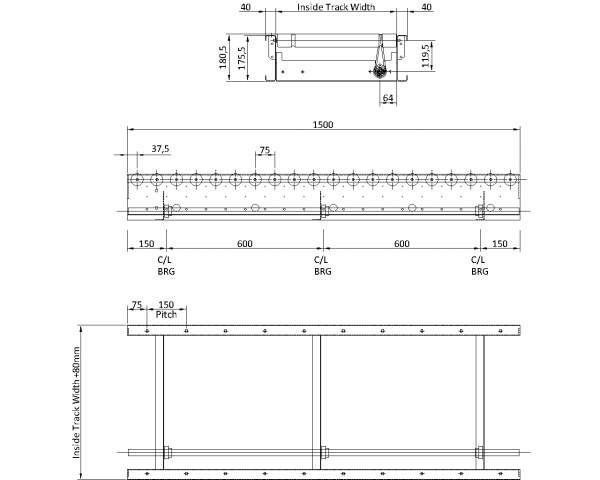

Painted Steel Powered Roller Lineshaft Conveyor – XU60/90 – 75mm Pitch


  • Incorporates 50 mm diameter rollers.
  • Drive capacity – XU60 8kg and XU90 12kg per roller.
  • ‘C’ section framework, 176mm x 40mm x 2.5mm having return folds for to retention of the facia.
  • Low pressure accumulation.
  • Drive up to 36 metres from one 0.37Kw drive unit.
  • Standard speeds available, 16, 21, 26 and 31 metres per minute as nominal.
  • Suitable for conveying very small products with a minimum product length of 225mm.
  • Supplied in 3 metre fully assembled lengths as standard. Other lengths available on request.
  • Standard widths available: 412, 462, 512, 612, 762 and 912mm. Other widths available upon request.
  • Full product testing available in our showroom.
  • Other roller pitches available upon request.
