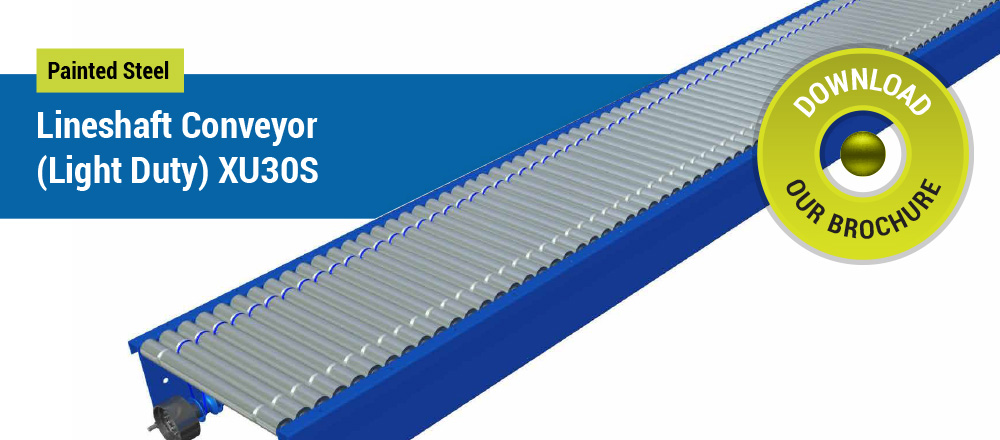

Painted Steel Powered Roller Lineshaft Conveyor – (Light Duty) XU30S

• Products • Lineshaft Powered Roller • Painted Steel Powered Roller Lineshaft Conveyor – (Light Duty) XU30S

Overview

  • Incorporates 25.4 mm diameter rollers fitted with 35mm diameter plastic sleeves with rollers set at 37.5mm pitch.
  • Standard speeds available 12, 15, 20, 25 and 30 metres per minute as nominal. Other speeds available on request.
  • Low pressure accumulation.
  • Suitable for conveying very small products with a minimum product length of 113mm.
  • Drive up to 36 metres from one 0.37Kw drive unit.
  • Supplied in 3 metre fully assembled lengths as standard. Other lengths available on request.
  • Standard widths available: 412, 462, 512, 612 and 762mm. Other widths available on request.
  • Full product testing available in our showroom.

Videos

prc_lineshaft_xu30

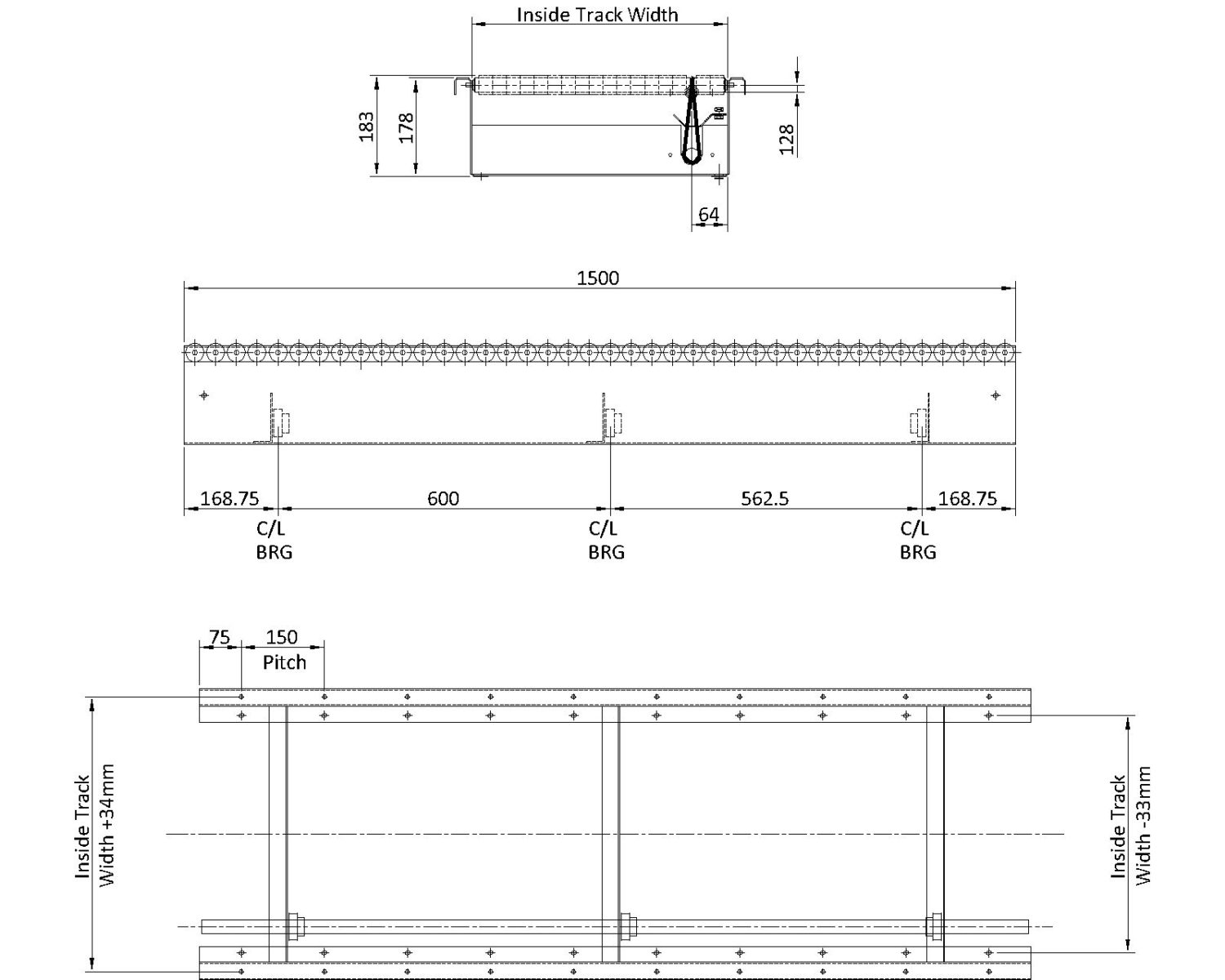

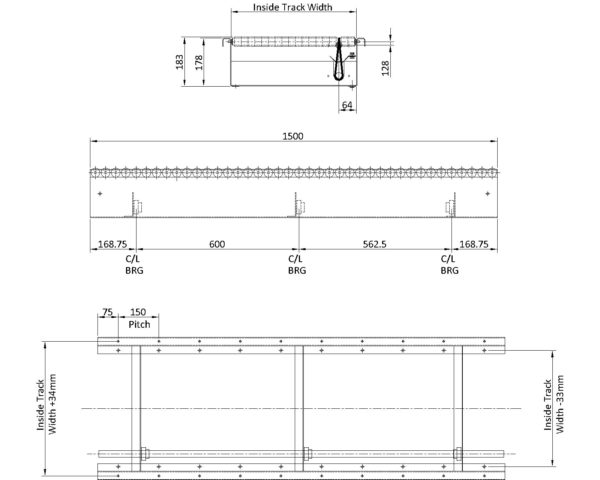

Painted Steel Powered Roller Lineshaft Conveyor – (Light Duty) XU30S Technical Drawing
