‘C’ section framework, 176mm x 40mm x 2.5mm having return folds for to retention of the facia.
‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.

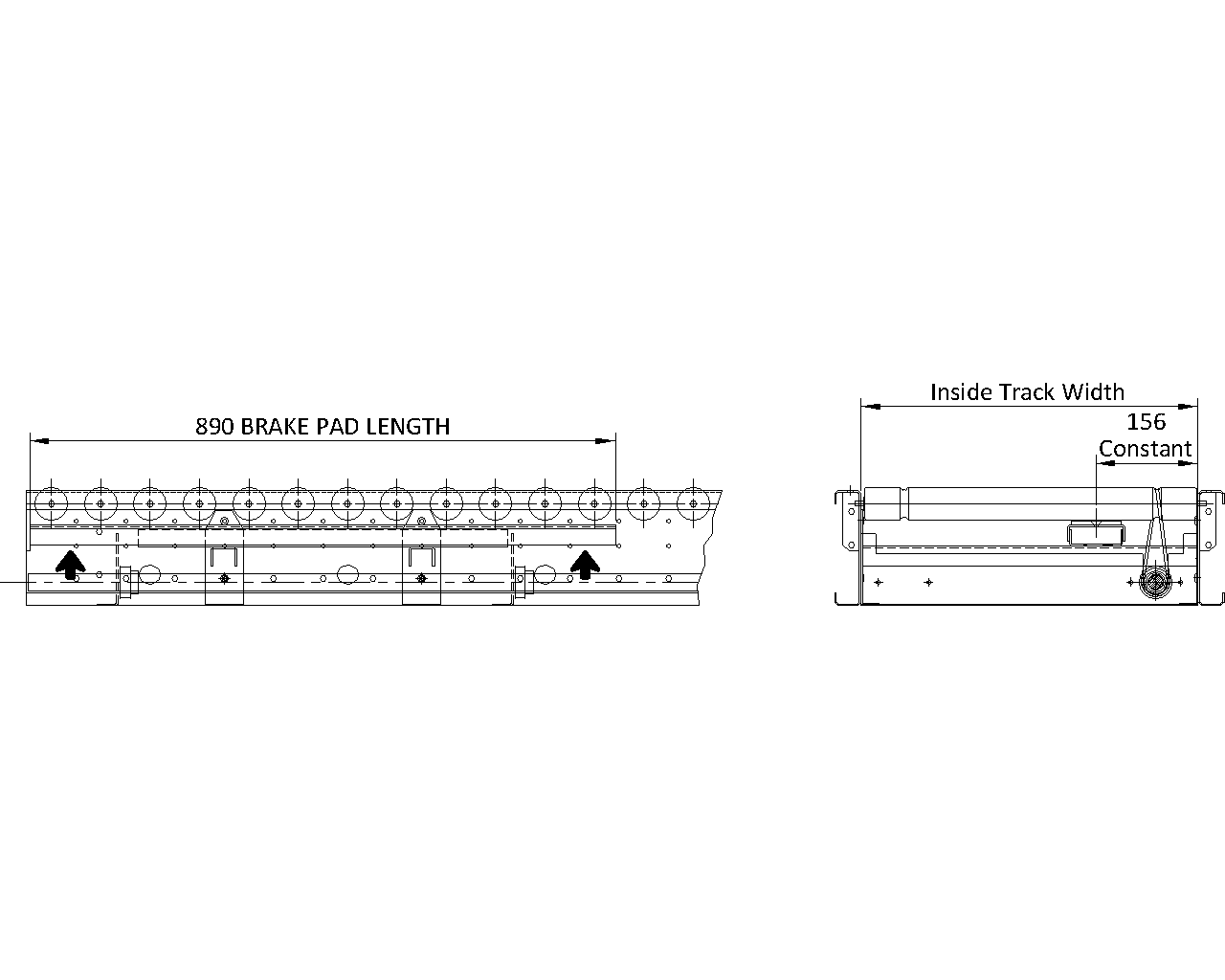

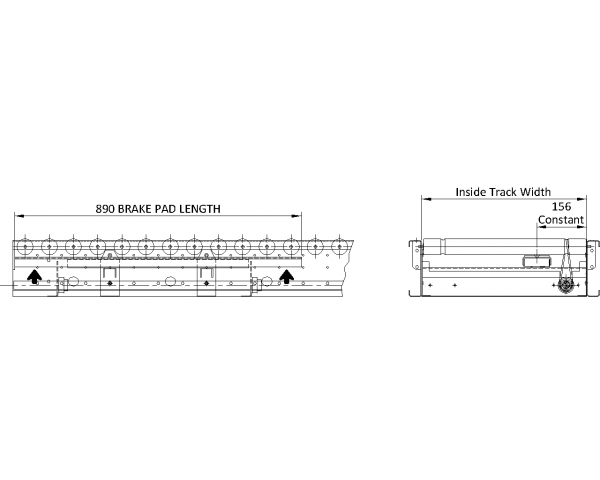

A pneumatically operated rubber covered friction pad comes into contact with the underside of the rollers and gives negative line pressure over a standard brake length of 890mm.
It can be used in conjunction with stops to reduce line pressure and provide singulation of products to chain transfer units, packing and wrapping machines etc.
Incorporates two single acting, spring return pneumatic cylinders.
Total air consumption per operation 0.10 litres.
For accumulation control, see our ‘Technical Manual.’
