Painted Steel Powered Roller Lineshaft Conveyor – Overview

The most versatile and economical conveyor available in material handling.

  • The more complex the configuration of conveyors, the fewer drives are required compared to conventional equipment.
  • One of the unique advantages of Lineshaft Conveyor is the number of ancillary modules which can be driven from one motor by means of couplings and universal joints.
  • Easily reconfigured to meet current and future demands.
  • Available in: Powder coated as standard, aluminium and stainless steel.
Features Benefits
Modular design. Proven product, highly configurable, easy and reduced installation and low maintenance.
Allows for variety of arrangements to be made from standard components.
Ability for transportation and accumulation on the same conveyor system. Versatility / adaptability in product handling.
Optimised productivity.
Fewer motors required. Reduced costs in installation, maintenance and power consumption.
Ability to include ancillary items. Highly adaptable / versatile and cost-efficient
Accumulation. Reliable accumulation thus eliminating product damage.
Easily reconfigurable if further ancillary items are added.
Quiet. Reduced noise is more conducive to good working environment.
Heavy duty drive belts on bends, merges and mitres. Increased driving capacity.

Videos

overview

Technical Information

Specification

Model Drive Capacity Per Roller Roller Diameter Roller Pitch Standard Track Widths Standard Speeds  (metres per minute)
XU30
XU30S
Light Duty
 4kg (3mm dia. belt)  35mm  37.5mm 412mm 12 / 15 / 19 / 24 / 29
462mm
512mm
612mm
762mm
XU60 Medium Duty 8kg (4.75, dia.belt) 50mm 75mm
100mm
150mm
412mm 12/ 15/ 19/ 24/ 29
462mm
512mm
612mm
762mm
912mm
XU90
Heavy Duty
12kg (5.3mm dia.belt) 50mm 75mm
100mm
150mm
412mm 12/ 15/ 19/ 24/ 29
462mm
512mm
612mm
762mm
912mm

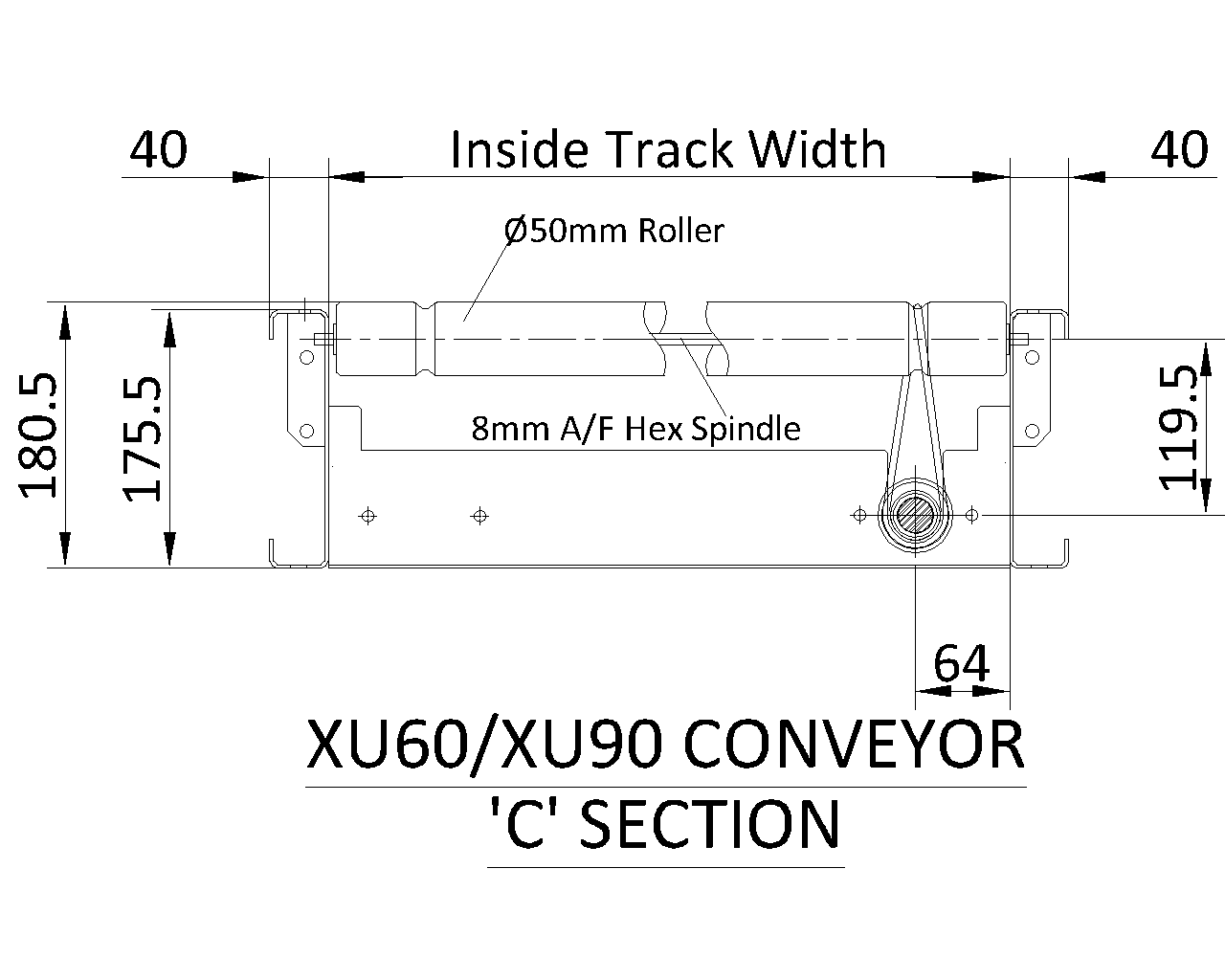

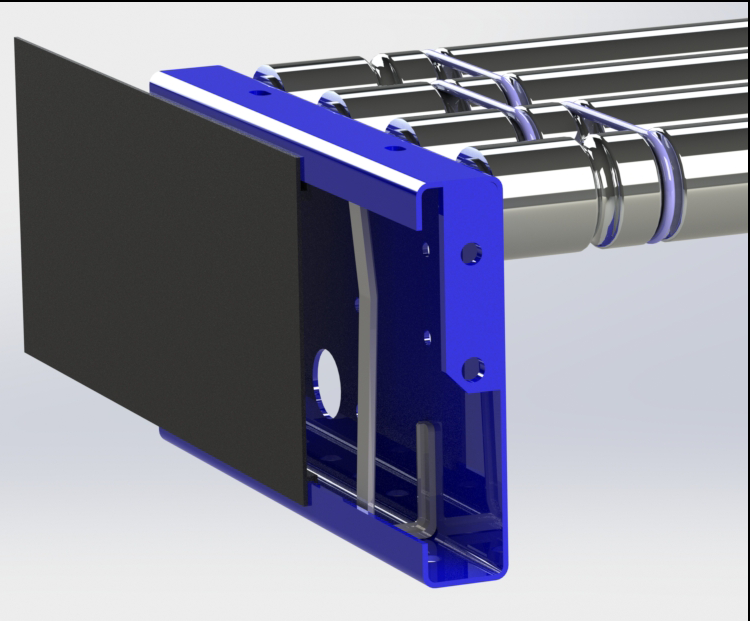

Frameworks manufactured from either 175.5mm x 40mm ‘C’ Section or 178mm high x 32mm flanges x 2.5mm thick ‘Z’ section side frames.  Full jig welded construction.  Supplied fully assembled 300mm minimum to 3000mm maximum module lengths. Standard line speed 5 – 55 m.p.m.  For higher speeds please consult with our sales department.

EXAMPLES

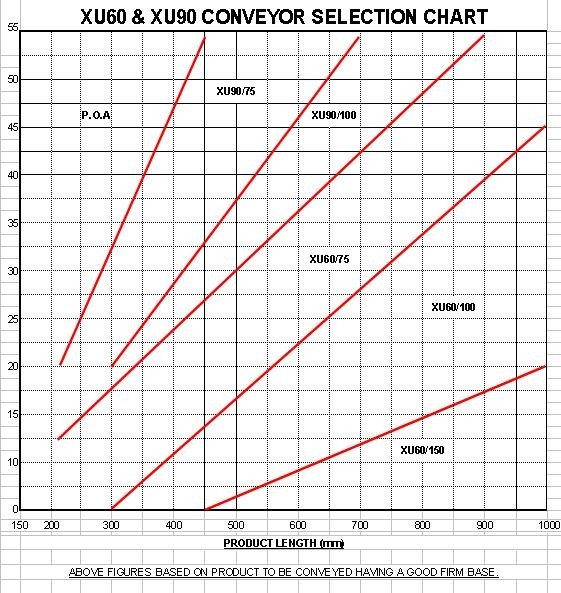

  • A box 400mm wide x 600mm long – weighing 20kg.  XU60/100mm pitch would be selected.
  • A box 250mm wide x 260mm long – weighing 12kg.  XU60/75mm pitch would be selected.
  • A box 400mm wide x 400mm long – weighing 35kg. XU90/75mm pitch would be selected.

IMPORTANT NOTE

Should there be any doubt regarding the base of the product to be conveyed, always quote for budget purposes XU60/90 at 75mm pitch.

Alternatively, product trials can be arranged at our factory.  Please contact our sales department to discuss.

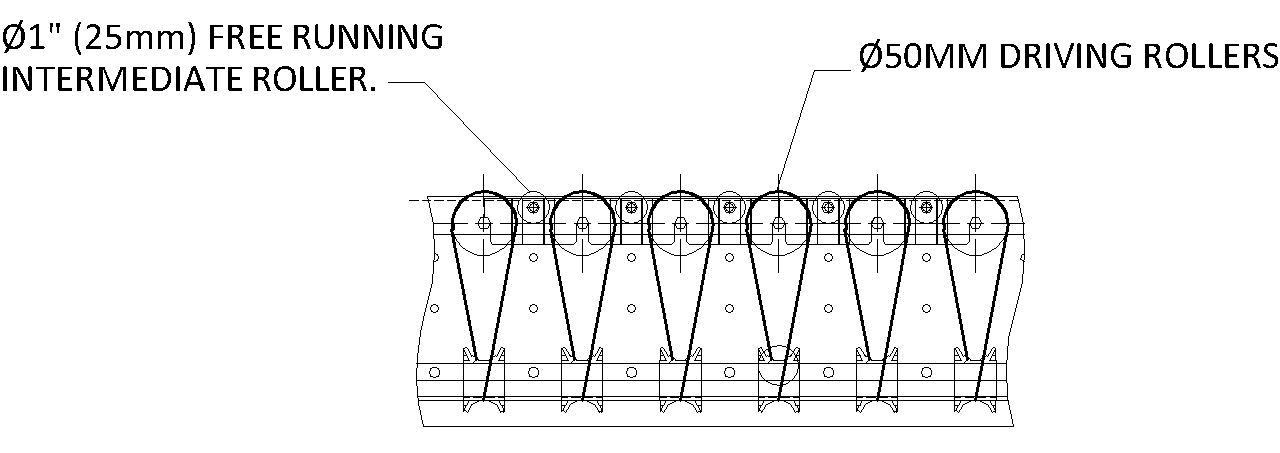

Should smaller products be introduced into the XU60/90 system, 1”  diameter intermediate gravity rollers can be fitted to straight sections, bends and merges up to a maximum 762mm frame width.

Lineshaft Powered Roller Range
