Painted Steel Powered Roller Lineshaft Conveyor – XU60/90 – 150mm Pitch
•
Products
•
Lineshaft Powered Roller
•

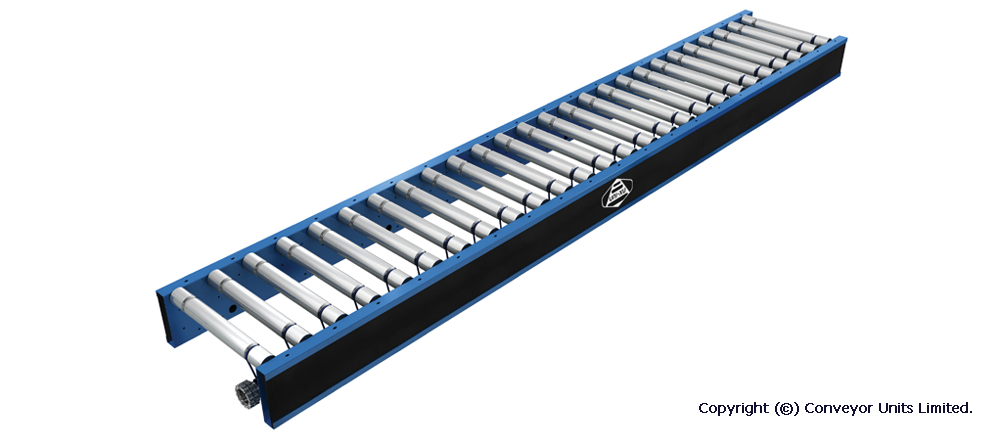

Painted Steel Powered Roller Lineshaft Conveyor – XU60/90 – 150mm Pitch
Overview
Incorporates 50 mm diameter rollers.
Drive capacity – XU60 8kg and XU90 12kg per roller.
Low pressure accumulation.
Drive up to 72 metres from one 0.37Kw drive unit.
Standard speeds available 16, 21, 26 and 31 metres per minute as nominal.
Suitable for conveying very small products with a minimum product length of 450mm.

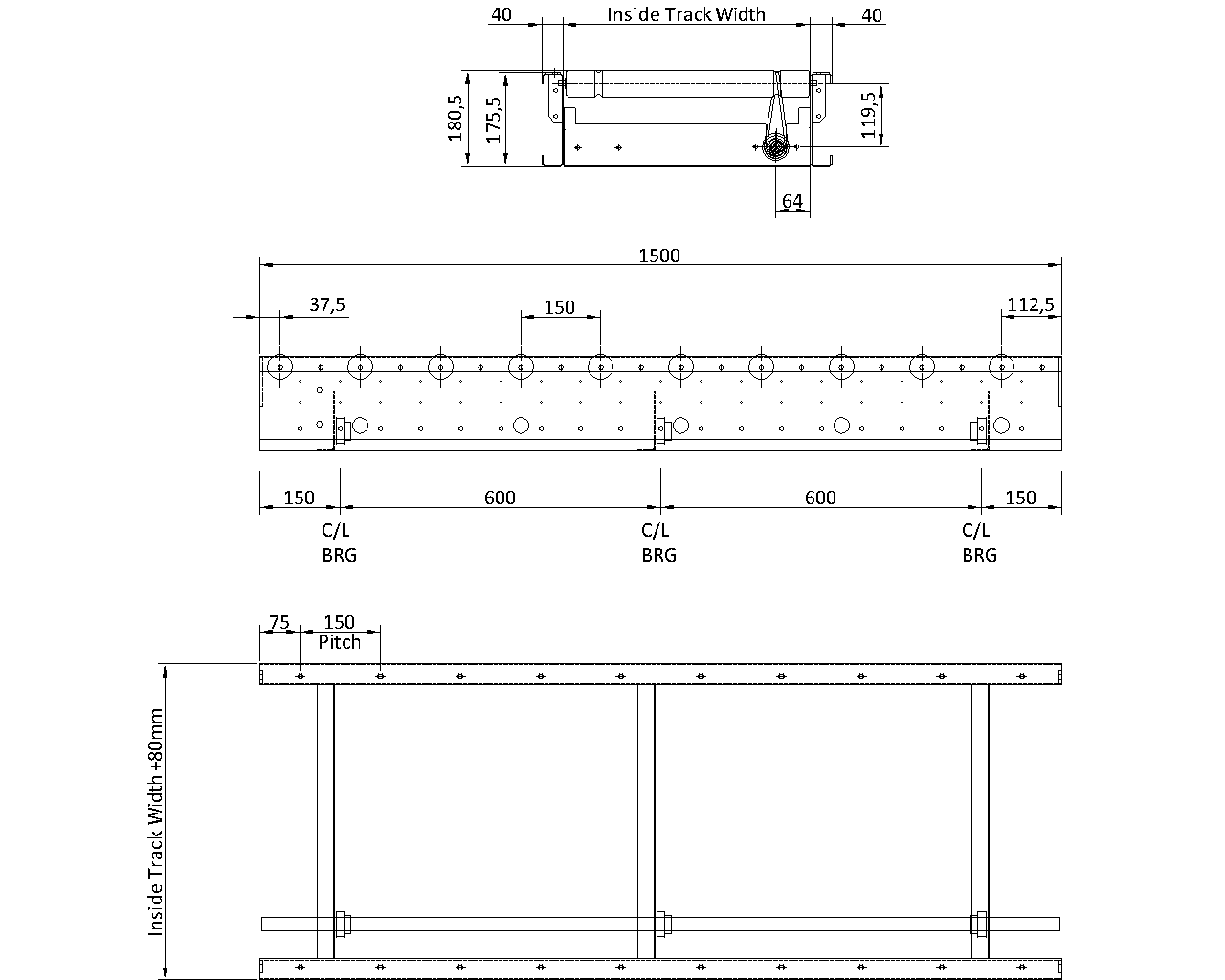

‘C’ section framework, 176mm x 40mm x 2.5mm having return folds for to retention of the facia.
‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework
Supplied in 3 metre fully assembled lengths as standard. Other lengths available on request.
Standard widths available: 412, 462, 512, 612, 762 and 912mm. Other widths available upon request.
Full product testing available in our showroom.
