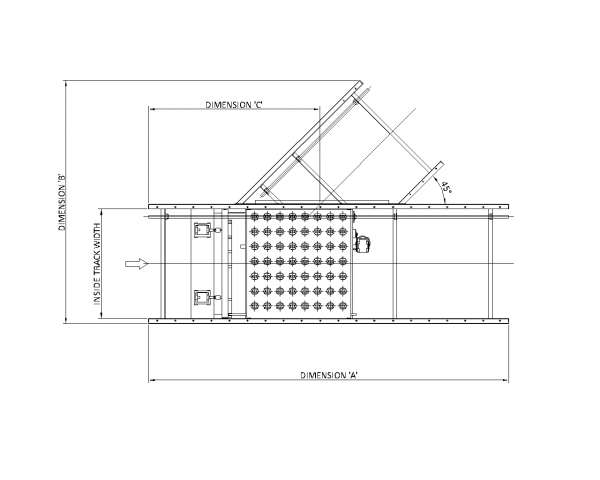

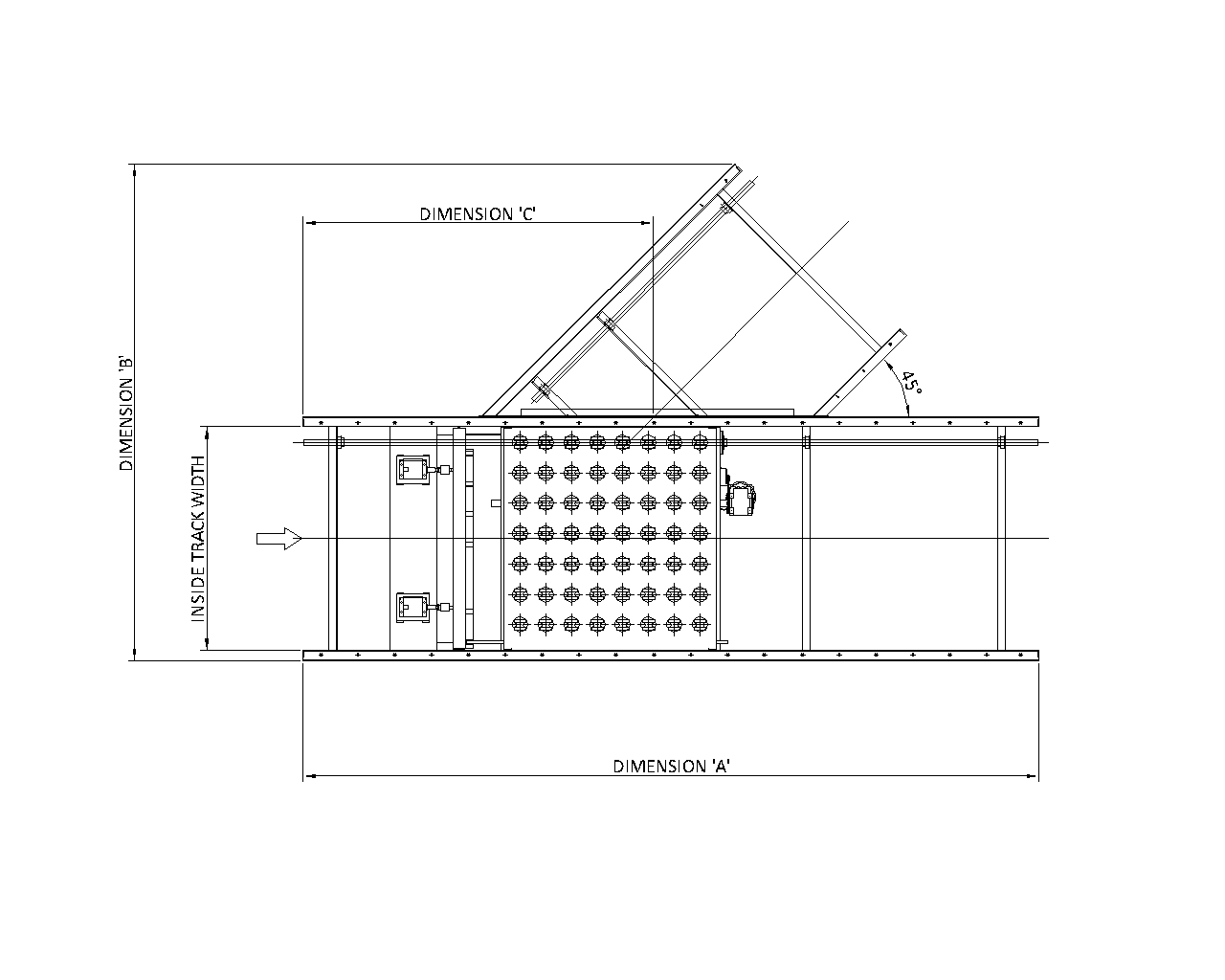

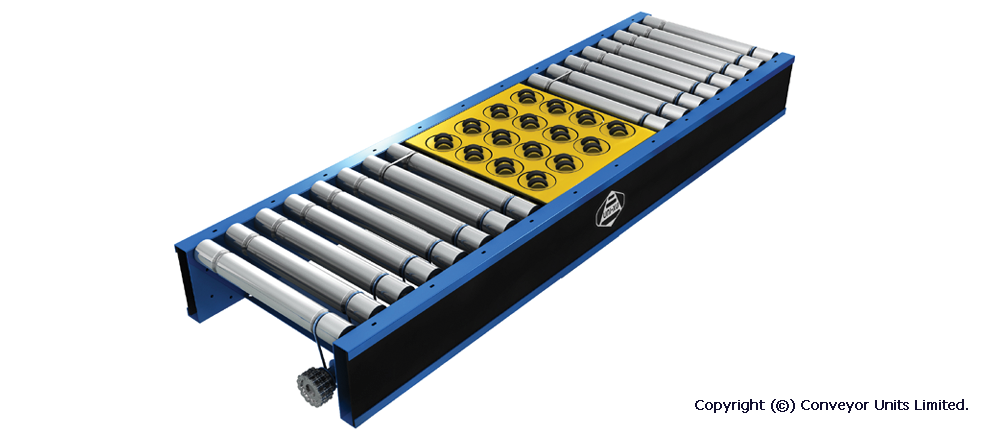

Painted Steel Powered Roller Lineshaft Conveyor – Switch Sorter

Overview

  • Available for XU60 and XU90.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • The sorter wheels are independently driven from a 0.37 kW SEW motor, to give either 60 or 110 metres per minute.
  • We recommend that an inverter is fitted to the gearbox to enable fine tuning of the speed that will be required to suit your application.
  • Incorporates double acting pneumatic cylinders.
  • Can be supplied right handed, left handed or bi-directional.
  • Minimum product size 200mm x 200mm
  • Available at 45° switching angle.
  • Normally used in conjunction with a 45° mitre section, although other options are available.
  • Accumulation is not advisable on these units.
  • Maximum operations 3000 products per hour.
  • Standard widths available: 462mm, 612mm, 762mm and 912mm.

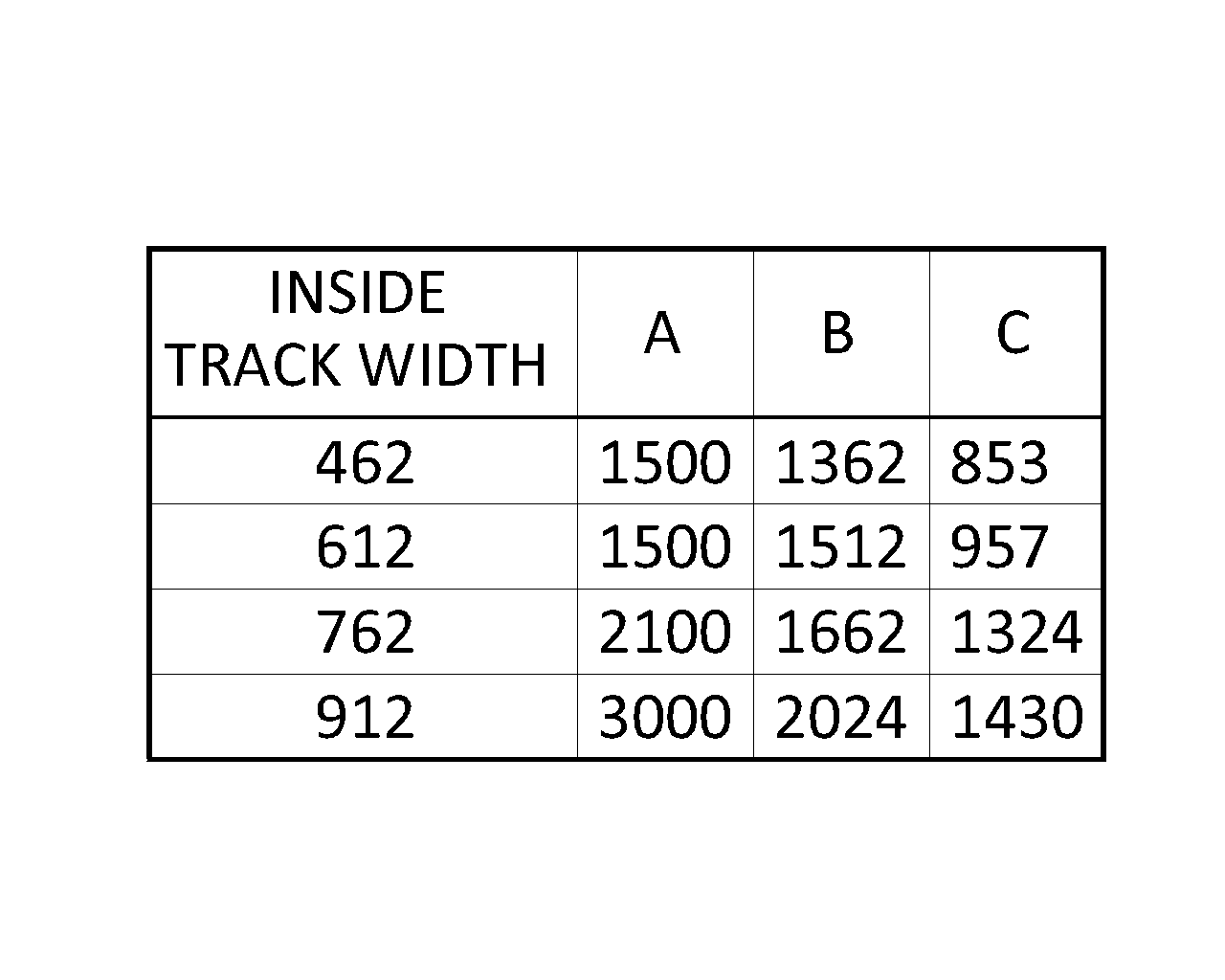

Technical Information

Sorter Size (mm) Product Minimum (mm) Product Maximum (mm) Product per Hour Max
462 200 x 200 350W x 520L 3000
612 200 x 200 500W x 500L 3000
762 200 x 200 600W x 600L 3000
912 200 x 200 750W x 750L 3000
