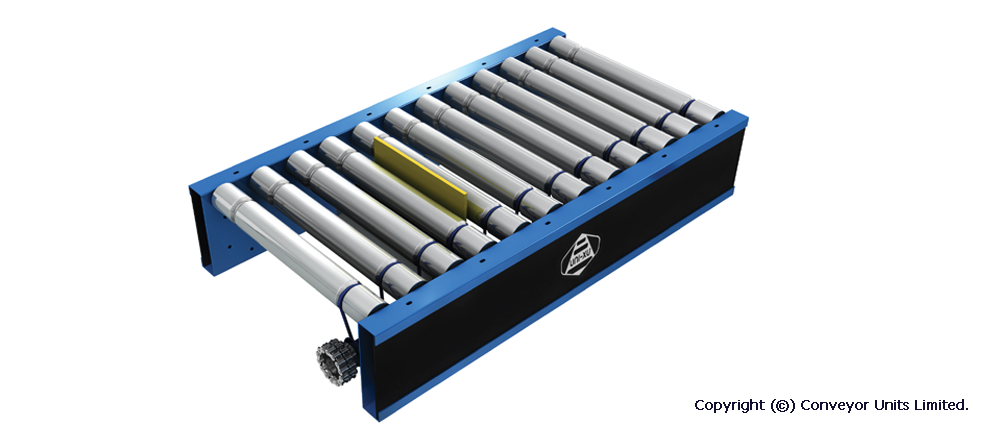

Painted Steel Powered Roller Lineshaft Conveyor – Vertical Blade Stop

Overview

  • Available for XU30, XU30S, XU60 and XU90.
  • ‘C’ section framework, 176mm x 40mm x 2.5mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
  • This stop can be incorporated into straight track positioned in between roller pitches for XU60/XU90 and would replace a roller for XU30/XU30S.
  • Speed up spools are supplied at the stop position to increase gaps between loads. Speed up jump chain assemblies can also be used for this application.
  • Incorporates double acting pneumatic air cylinder.
  • Air consumption for each cylinder operation 0.70 litres
  • Also available as Electric operation.

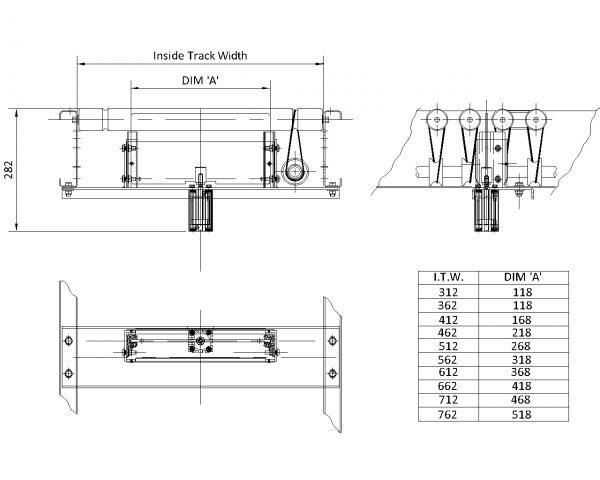

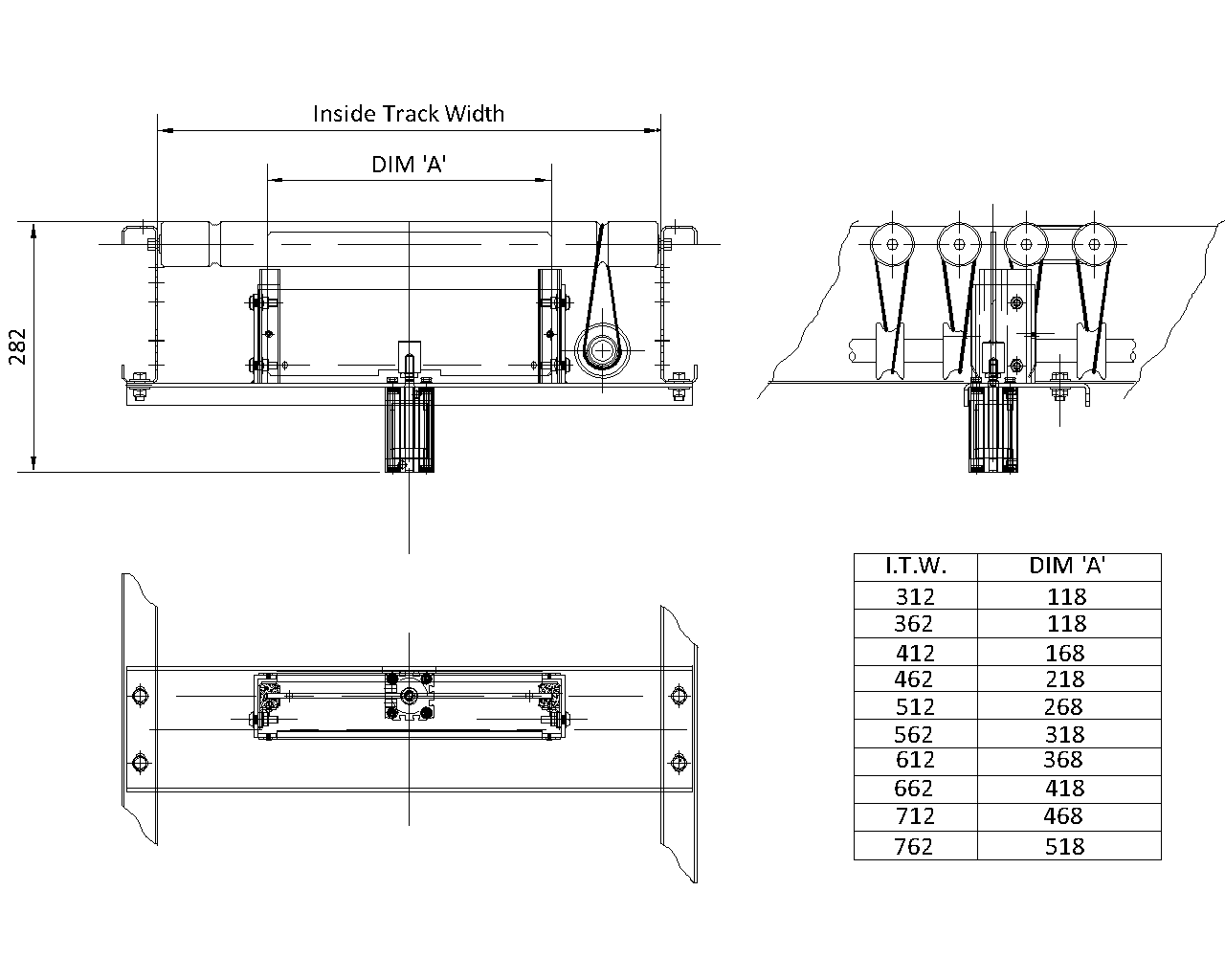

  • Standard widths available:  412mm, 462mm, 512mm, 612mm, 762mm and 912mm. Other widths available on request.
